This page will serve as a home for general concepts and systems shared across games that don't have a standalone page.
Data types
This guide provides general info on data types commonly used in tag editing and scripting within the halo mod tools, intended to serve as an introduction and explain the logic behind each type.

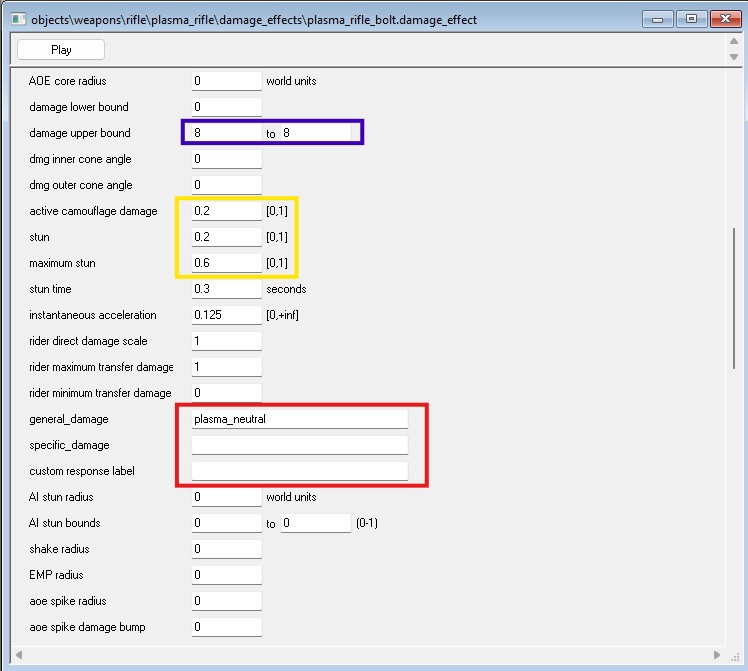

In blue is real, yellow is real as a fraction and in red is string
Real
This catch-all is a common type used for many fields, it represents real numbers such as 2, 0.4 or 3.6, essentially any number you could ever think of to measure a defined property (such as length, temperature or time).
Float
The issue with reals is that computers cannot count infinitely precise, because of this computers interpret real as float, with this we get precision loss (better known as floating-point error) as the computer can only represent the closest calculated number to the anticipated real number. You likely won't need to worry about this in most modding situations.
Fraction
Sometimes a field will ask for a fractional value, in such cases we use real to define a percentage. An example would be weapon heat fields which define heat in relation to 0 (no heat) and 1 (full heat), so a value of 0.44 will mean 44%
Integer (int)
Integers represent whole numbers and whole numbers only, no decimals, integer range is determined by platform. Typically normal integer size is defined by the presence of shorts or longs, if longs are present then normal integers will be smaller than them, and vice versa with shorts.

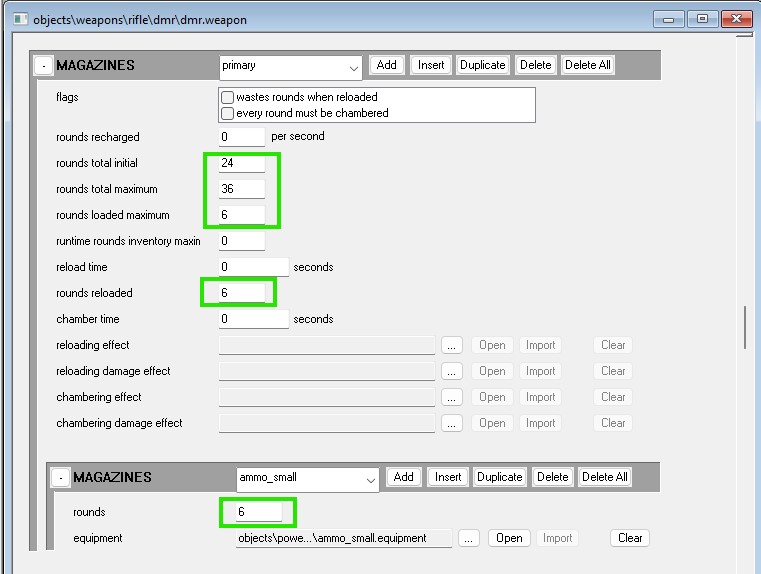

All of these fields take short integers, so a value such as 6.5 would not be allowed
Unsigned Integer (uint)
Same as above but without the ability to use negative numbers (unsigned), thus doubling it's max value.
Short (integer)
A version of the integer data type scaled back for a smaller range of values compared to a normal integer. Typically assumed range is -32,768 to 32,767, For the purposes of Halo modding, shorts are 16 bit (same as assumed range).
Unsigned Short
Same as above but unsigned, thus it's typically assumed max range is 0 to 65,535
Long (integer)
A version of the integer data type that compared to normal integers has a larger range, typically assumed range is -2,147,483,648 to 2,147,483,647
Unsigned Long
Same as above but unsigned, typical range is 0 to 4,294,967,295
Boolean
In scripting you may often find yourself setting up a script that needs to wait for a condition, in such cases you may often use a boolean, which means TRUE or FALSE, though haloscript also allows true and false to also be represented by numbers: 1 = TRUE and 0 = FALSE.

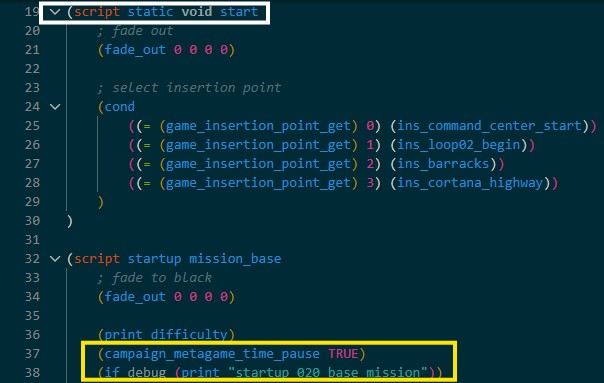

In white we can see the script declaration and it's return type, while in yellow we can see two commands that use booleans, the first setting a variable to true and the second printing text if the variable `debug` is true
String
Some fields will ask for a string entry, this is where you can type normal words and letters, usually in reference to some other block that defines what these words mean. An example would be damage types (as found in H2-H4) where damage effect tags reference a string that the globals tag defines for a damage type and it's properties.
Void
When declaring a script you may be asked for a return type upon script completion, in some cases short or real may be used, or you may choose to have no return type, in the case of the last option this is done by declaring a void return.
Acknowledgements
Thanks to the following individuals for their research or contributions to this topic:
- odchylanie_uderzenia (writing and research)
