This page is incomplete! You can contribute information using GitHub issues or pull requests.

This is an article about the legacy H2V Tool for use with Halo 2 Vista, for the H2 Tool for MCC see H2 Tool

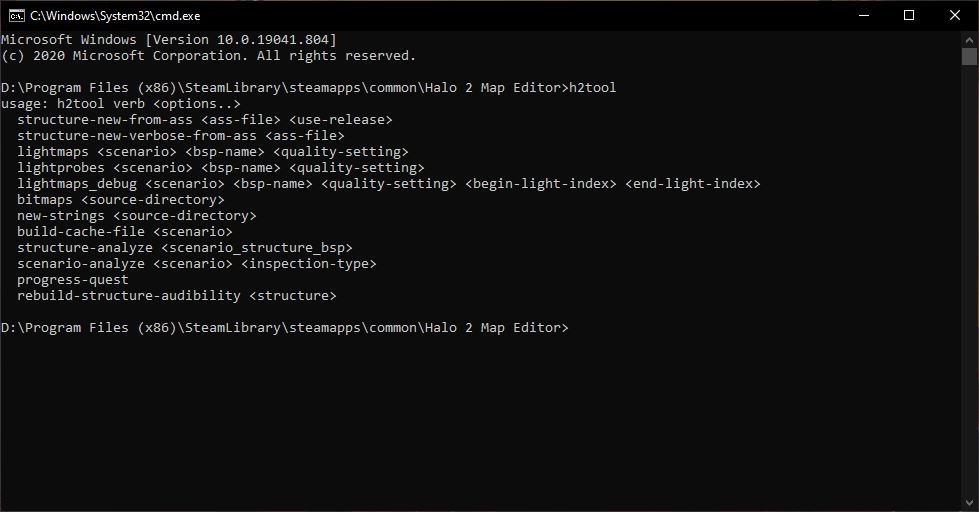

H2V Tool (h2tool.exe), is a command-line utility used to compile data into tags, and tags into maps. It is part of the H2V-EK.

ASS compilation

An ASS file containing model geometry can be compiled into a scenario_structure_bsp using the structure-new-from-ass verb:

# structure-new-from-ass <ass-file> <use-release>
h2tool.exe structure-new-from-ass "scenarios\multi\example\structure\example.ASS" yes

For the example above, Tool would expect to find an ASS file at data\scenarios\multi\example\structure\example.ASS. Assuming no errors, the ASS file will be compiled into a level at tags\scenarios\multi\example\structure\example. The scenario name comes from the parent folder name and the BSP name comes from the ASS filename.

Multiple JMS files can be placed in the models directory for multiple BSPs. Each JMS will be compiled into a separate structure BSP and added to the scenario. Scripts and trigger volumes can then be used to switch between the BSPs. Do not do this if you're making a multiplayer map.

The argument <use-release> is unused and was probably related to running either a debug or release version of the toolset. Leave it as "yes".

ASS compilation verbose

Same as above, but outputs to the console much more in-depth information on the model while it's being processed. This is only useful if you're a developer that's debugging an import pipeline.

# structure-new-verbose-from-ass <ass-file>
h2tool.exe structure-new-verbose-from-ass "scenarios\multi\example\structure\example.ASS"


Tool can be used to generate lightmaps. Using Tool, you will need the following arguments:

  1. Scenario tag path: This is not a file path! Leave off the ".scenario" extension and start the path from within the tags directory.
  2. BSP name: The name of the BSP tag without the file extension.
  3. Lightmap quality: Choose a setting string from the following list. Settings are ordered from lowest to highest.
SettingPhoton CountSample CountGather DistanceAntialiasing SamplesBounced Lighting
custom (h2codez-only)User definedUser definedUser definedUser definedUser Defined

For example:

# lightmaps <scenario> <bsp-name> <quality-setting>
h2tool.exe lightmaps "scenarios\multi\example\example" "example" checkerboard

Once you run the command rasterizing should begin. Wait until it finishes and you will be able to see the results in H2V Sapien.



# lightprobes <scenario> <bsp-name> <quality-setting>
h2tool.exe lightprobes "scenarios\multi\example\example" "example" checkerboard

Lightmaps debug


# lightmaps_debug <scenario> <bsp-name> <quality-setting> <begin-light-index> <end-light-index>
h2tool.exe lightmaps_debug "scenarios\multi\example\example" "example" checkerboard 0 1

Batch bitmap compilation

TIF, TIFF, uncompressed 32bit TGA, JPEG, and BMP images with a color depth of 24-bits or higher can be compiled into a bitmap tag using the bitmaps verb:

# bitmaps <source-directory>
h2tool.exe bitmaps "characters\cyborg\bitmaps"

For the example above, Tool would expect to find image files at data\characters\cyborg\bitmaps\. Assuming no errors, each image file will be compiled into a bitmap tag at tags\characters\cyborg\bitmaps\. Each image file that exists in the source directory will be compiled into it's own individual tag with the name of the tag coming from the image filename.

Unicode String compilation

UTF-16 text files containing strings can be compiled into a multilingual_unicode_string_list using the new-strings verb:

# new-strings <source-directory>
h2tool.exe new-strings "scenarios\descriptions"

For the example above, Tool would expect to find text files at data\scenarios\descriptions\. Assuming no errors, a file named "example.txt" would be compiled into tags\scenarios\descriptions\example.multilingual_unicode_string_list. Each text file that exists in the source directory will be compiled into it's own individual tag with the name of the tag coming from the text filename.

Build cache file

A scenario can be compiled into a map using the build-cache-file verb. Simply provide your scenario's tag path:

# build-cache-file <scenario>
h2tool.exe build-cache-file "scenarios\multi\example\example"

The resulting map file can be found in H2EK's maps directory.

Structure analyze

Checks a structure for errors.

# structure-analyze <scenario_structure_bsp>
h2tool.exe structure-analyze "scenarios\multi\example\example"

Scenario analyze

Checks the scenario for errors.

# scenario-analyze <scenario> <inspection-type>
h2tool.exe scenario-analyze "scenarios\multi\example\example" "count tags"

Use one of the following strings for inspection type.

"count tags"
"dump tags"
"find material references"
"count edges"
"check effects"

Progress quest

This command does nothing. It might have been used to test progress bars.

# progress-quest
h2tool.exe progress-quest

Rebuild structure audibility


# rebuild-structure-audibility <structure>
h2tool.exe rebuild-structure-audibility "scenarios\multi\example\example"
