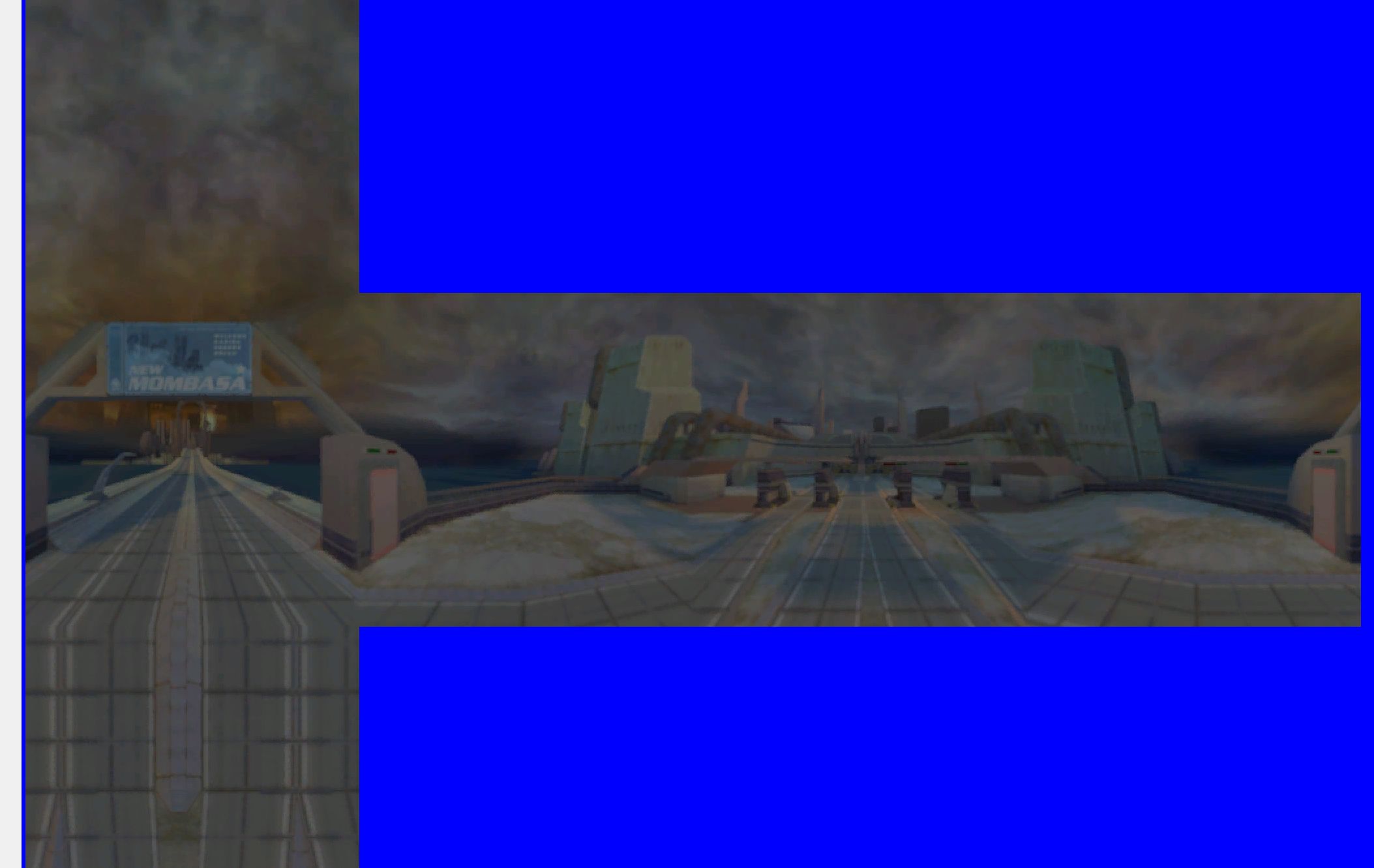

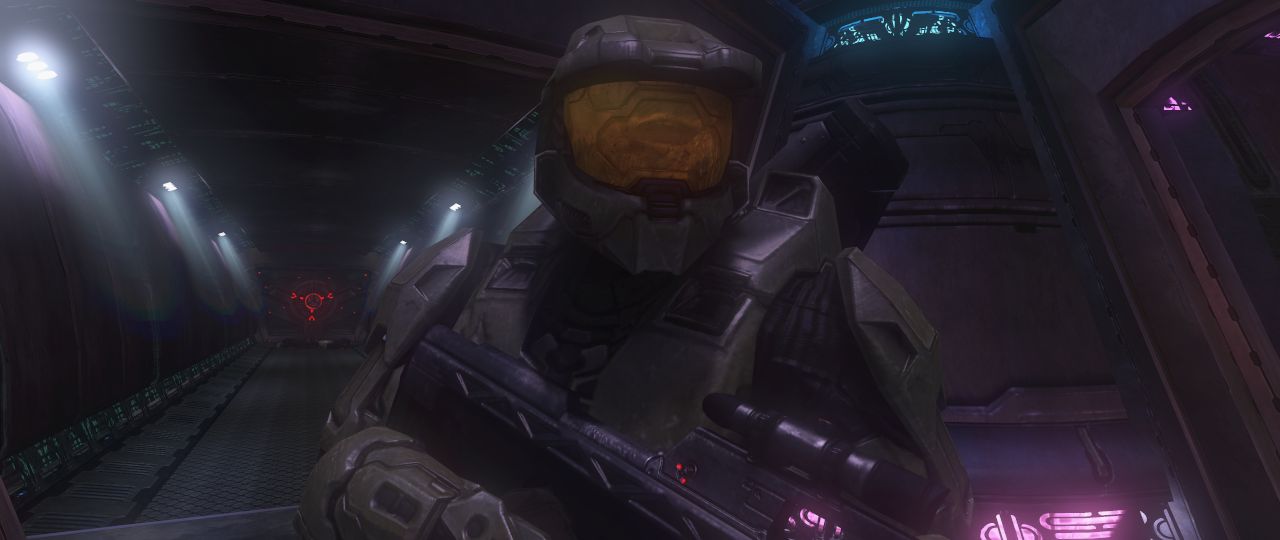

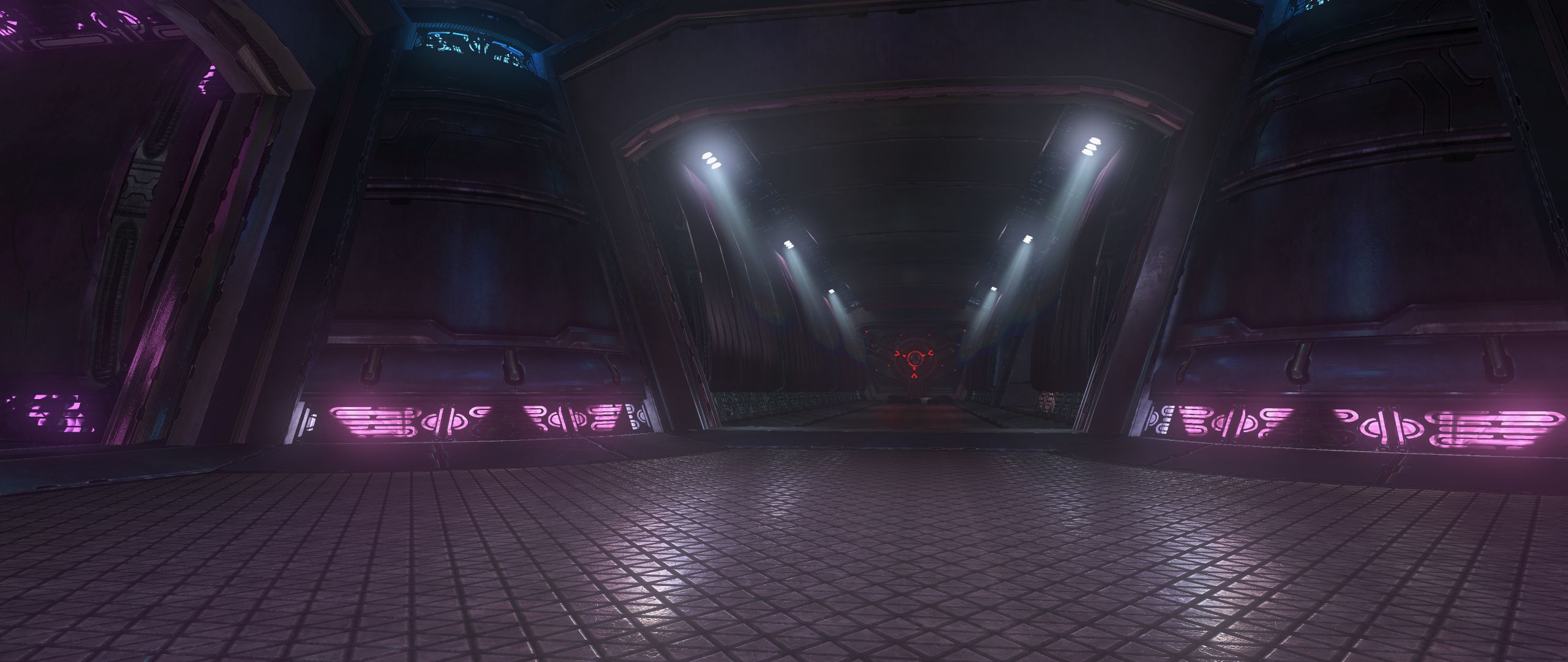

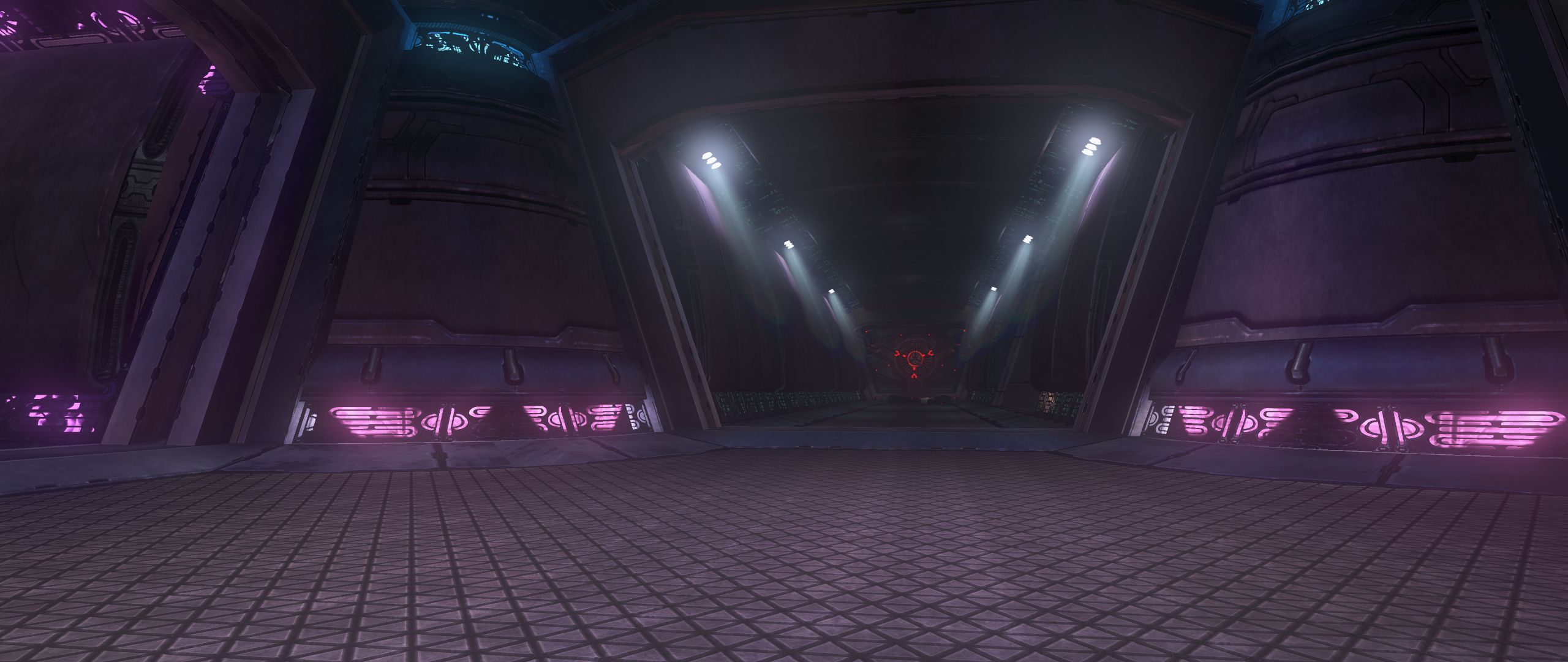

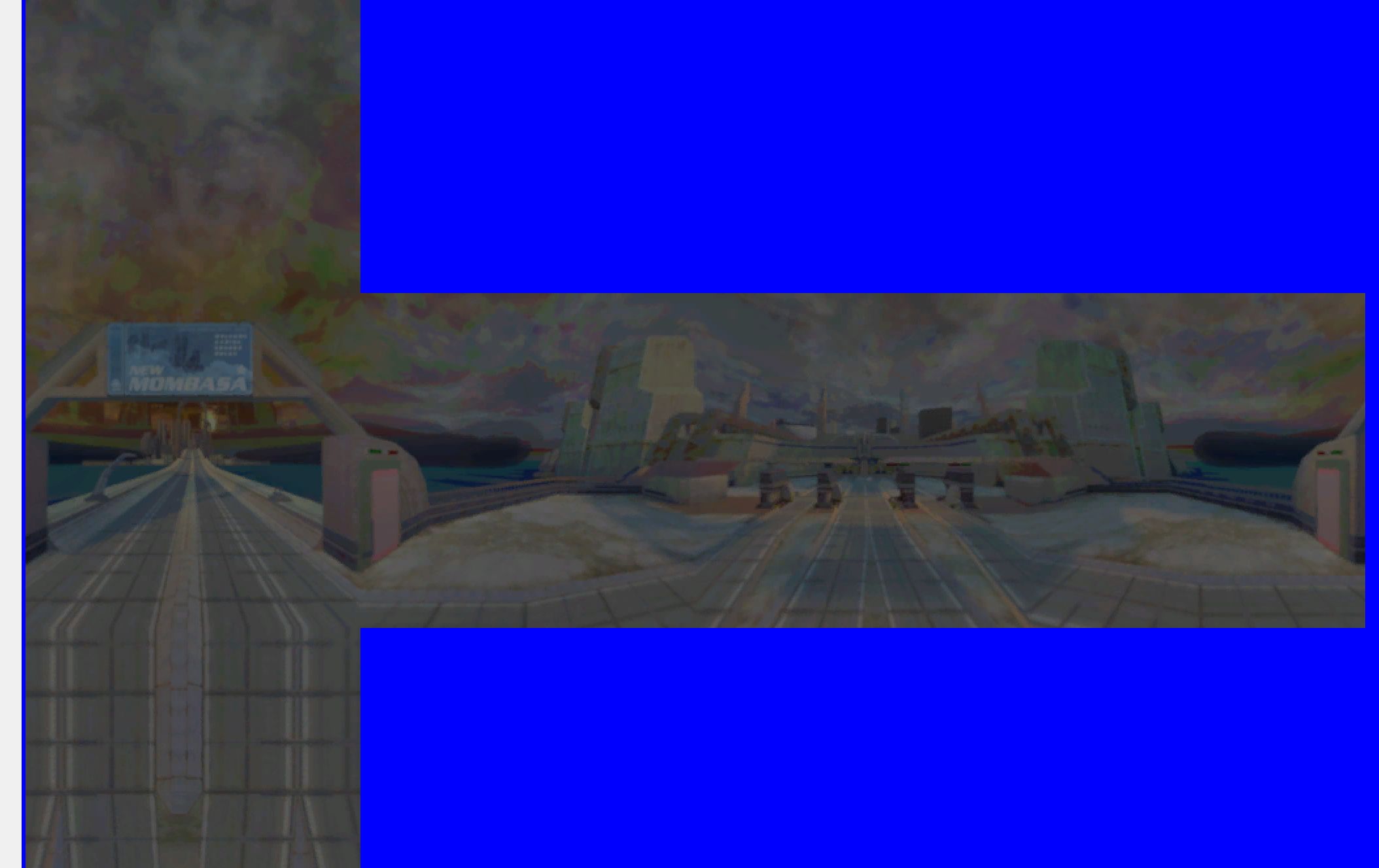

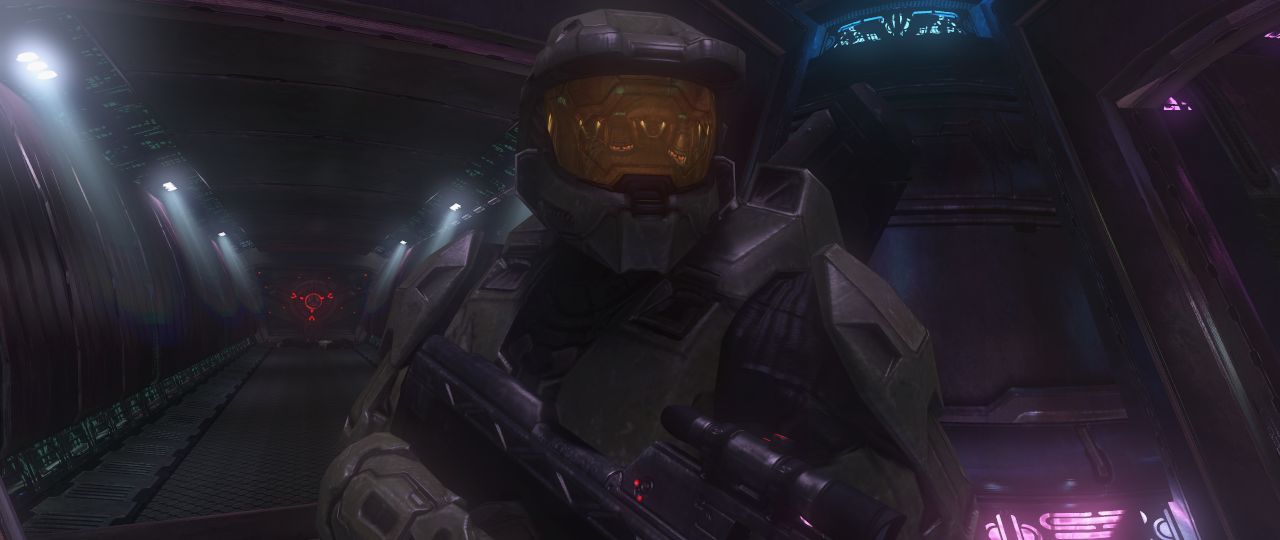

Halo 3 introduced a dynamic cubemap system in conjunction with dynamic environment mapping which allows you to place down points in a level where cubemaps should be generated, this allows any objects, and map geometry their shaders to display reflections based on where those cubemap points were placed.
For objects, the cubemap changes depending on which point you're closest to. For level geometry, the cubemap that gets used is determined by which cubemap point is inside of the current cluster.
For shaders to display dynamic cubemaps, you must set the environment_

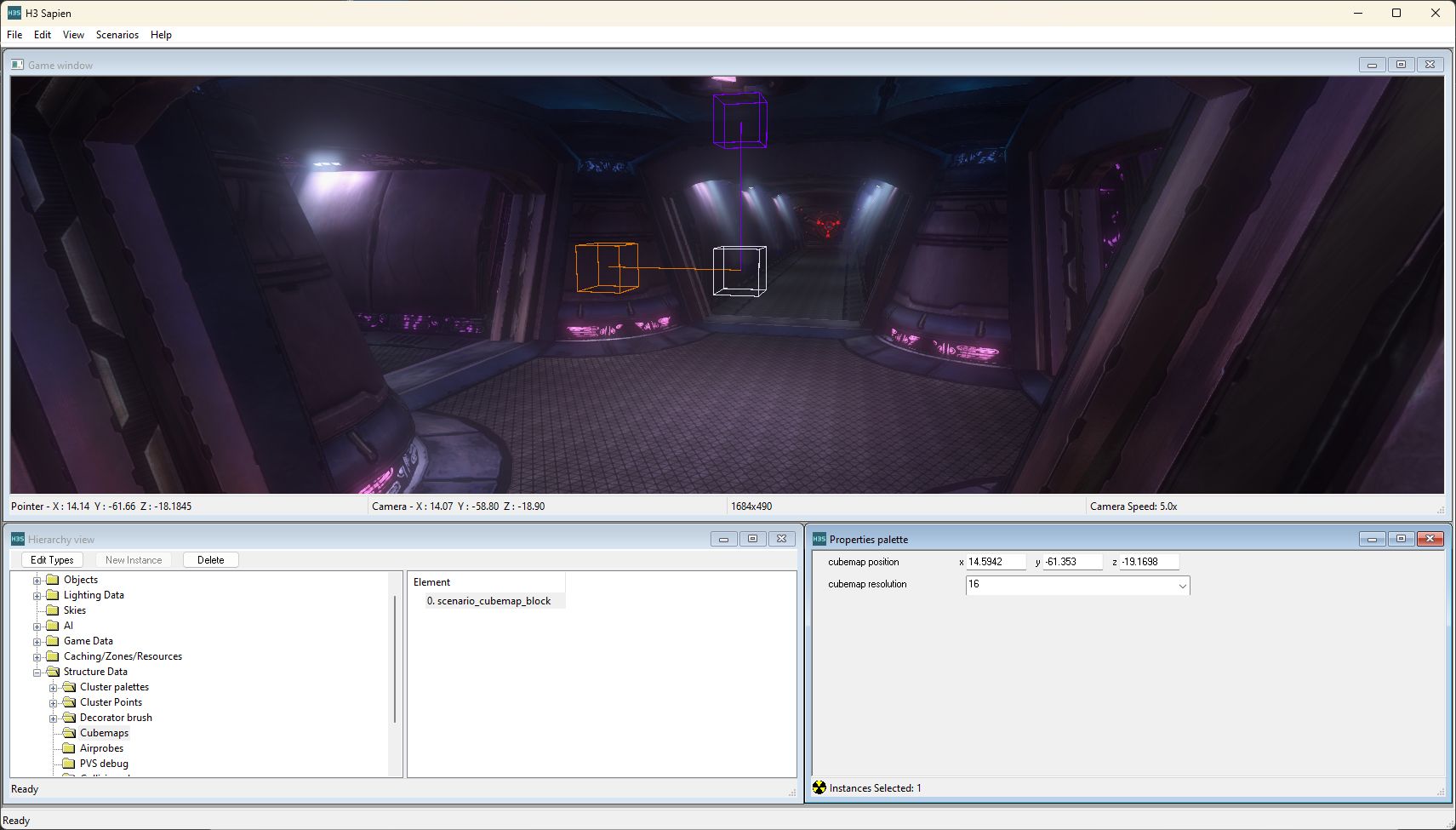

Cubemap point placement is done through Sapien, to place down points you will need to navigate to Scenario > Structure Data and click on the Cubemaps folder in the Hierarchy view window, once inside you should now be able to right click inside of the Game window and place down cubemap points which will then appear in the Hierarchy view.

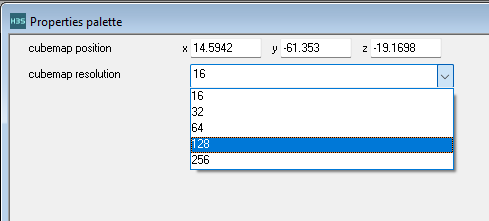

By default any placed cubemap points will be 16x16 in resolution, but you can change that by clicking the cubemap point in either the Hierarchy view window or the Game window and changing the cubemap resolution option in the Properties palette window.
Higher Resolutions will result in clearer, more visible reflections but will negatively impact the size of the cubemaps bitmap tag and in turn, the compiled cache file.
We can now move on to generating the cubemaps. To do this it's recommended you use Standalone (halo3_
If you're generating cubemaps for a multiplayer level, use the following console commands in order:
game_multiplayer slayer ; Replace with the path to your actual .scenario tag WITHOUT the extension: game_start path\to\scenario\scenario
If you're generating cubemaps for a campaign level, you will only need to run the
game_start command using the same format as above.
When you're loaded in the level, open the console and run the following commands:
set terminal_render false set console_status_string_render false set events_debug_spam_render false error_geometry_hide_all
This will ensure that no debug text is visible on screen as those will be visible during cubemap generation which we do not want. Finally, open the console once more and run the
cubemap_dynamic_generate command and wait for it to finish.

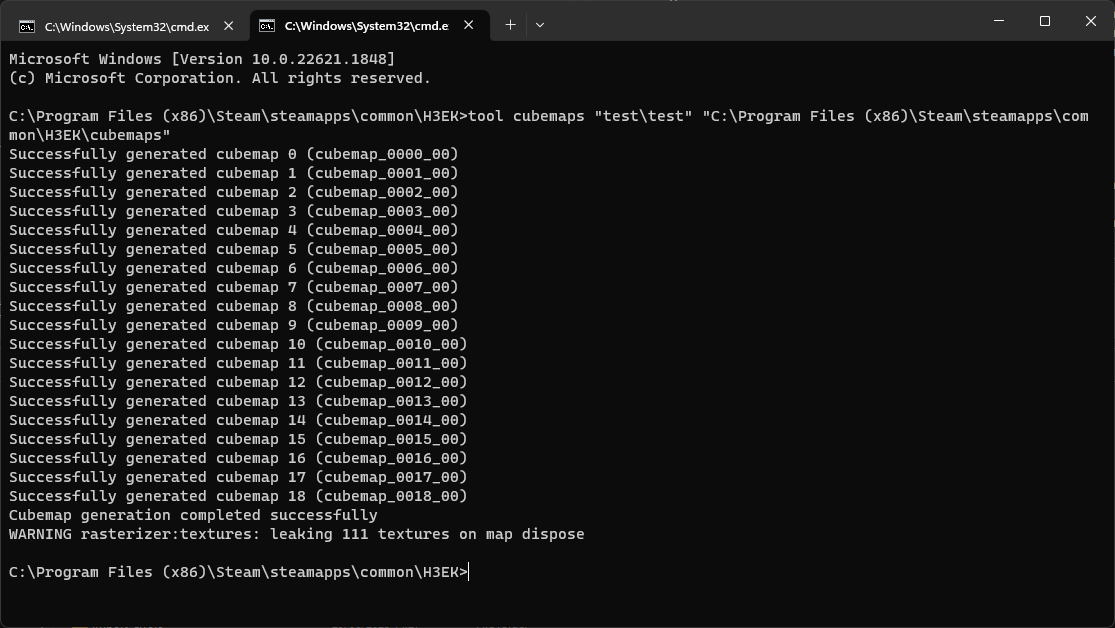

We can now import our cubemaps into a bitmap tag. To do so open a command prompt window in your H3EK install folder and run the
tool cubemaps command with the first arguement pointing to your scenario tag (without the .scenario extension) and the second arguements pointing to the cubemaps folder in the root of your H3EK folder like so:
tool cubemaps "path\to\scenario\scenario" "(H3EK Folder)\cubemaps"

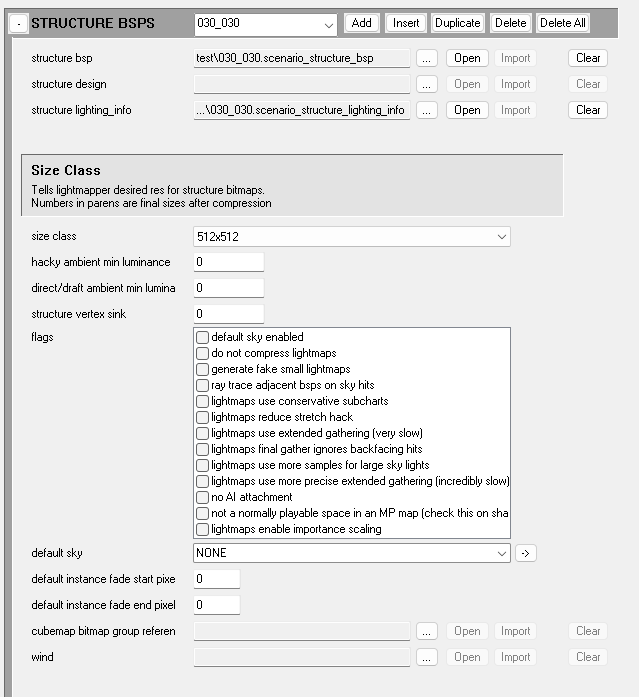

Click on the ... button next to cubemap bitmap group reference and navigate to the folder where your scenario is stored. The

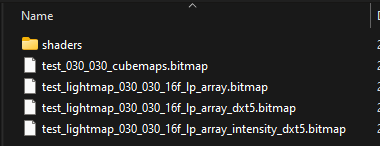

cubemaps command we ran earlier should have generated a bitmap tag that includes your scenario's name, the BSP the cubemaps were taken in, and ends with
For example with a scenario named
test and a BSP named
030_030, the bitmap bitmap tag would be
If you have multiple BSPs setup in your scenario, make sure to assign the correct cubemaps bitmap to each one.
After you've completed all steps, you should now have a level setup with dynamic cubemaps!
