A map, also known as a cache file, is a bundle of processed tags which can be loaded and used by Halo. With the exception of resource maps, each map represents a playable campaign, multiplayer level, or main menu.

Maps are found in Halo's maps directory and have the ".map" extension. Maps in subdirectories are not loaded by the game. H1CE mods like Chimera and HAC2 store downloaded maps in a separate location and allow the game to load them.

Although maps work mainly the same way in each release of H1, there are a number of differences listed on this page which prevent maps from being reused across them as-is. For example, an H1CE map file cannot be used in H1PC Demo without recompiling it from tags.

Building maps from tags

Tool's build-cache-file verb is the official way to build a map for MCC, or for Custom Edition with the HEK, from a scenario tag. The resulting map contains all tags needed by the scenario. The unofficial invader-build tool can also build maps from tags, including targeting all platforms like Xbox, Retail, and Demo, while also validating your tags for invalid data that could cause crashes or undefined behaviour at runtime.

When tags are built into a map, their data is prepared for how it will be used at runtime. Tag path references are replaced with pre-calculated indices or pointers, child scenarios are merged, extra fields are calculated, and the metadata for bitmaps and sounds is separated from their raw data. Tool even makes some hard-coded tag edits.

Extracting tags from maps

Tag extraction is the process of reconstructing source tag files (also called loose tags) from a built map so that they can be easily modified and rebuilt into new maps. H1 is currently the only game where tag extraction is possible due to its well understood tag stuctures and processing, and mature community tools. Source tags can be mostly reconstructed, but some information like child scenarios and bitmap color plate data is lost during map building.

Tag extractors must take care to carefully reverse all tag processing performed when the map was built, and invader-extract is the best tool for this. Do not use outdated tools like HEK+.

Tag extraction can be hindered if the map has been protected.

Editing and porting maps

The recommended approach to porting or modifying maps is to obtain their source tags and recompile the map using Tool or invader-build. This ensures the greatest flexibility and tags will be processed correctly when the new map is built. It is also possible to directly edit ("poke") the tags within a map using tools like Assembly, but this can be error prone or more limiting than working with source tags. Adding new assets ("injecting") is harder than using the intended asset pipeline.

Map types

The type of a map is determined by the scenario type field when the scenario is compiled:

• Multiplayer: In H1CE, multiplayer maps can be loaded through the in-game menu or with the command sv_map <map> <gametype>. Loading a multiplayer map using map_name <map> will trap the player in the level without spawning unless there is a singleplayer spawn present in the scenario (a spawn with no game modes set). In Standalone you need to use the combination of game_variant <gametype> followed by map_name <scenario tag path>.
• Singleplayer: To load a singleplayer map in H1CE, you can either use a modded ui.map which includes menu options to launch it, or load it directly using the map_name <map> console command. In Standalone you just need to use map_name <scenario tag path>. When Tool compiles this map type, it strips multiplayer information from globals and applies some balancing tag patches. These patches are applied at runtime in H1X.
• UI: The special ui.map contains resources for the game's main menu, including bitmaps for its UI elements like the server browser and the Halo ring background. When Tool compiles a UI map, it strips multiplayer info and fall damage blocks from globals. Custom UI maps for Custom Edition which intend to add a campaign menu must include a dummy first menu item since the game is hardcoded to remove it.

Resource maps

Resource maps provide a way for certain tags to be stored external to a playable map rather than its tags being totally self-contained. These maps themselves are not playable and have a different header structure, but instead contain shared tags referenced by normal map files. This feature was introduced with H1PC with bitmaps.map and sounds.map to store bitmap and sound tags respectively, and loc.map was added in H1CE to store font and unicode_string_list. MCC H1A no longer uses loc.map except for backwards compatibility with maps compiled for Custom Edition. H1X does not use resource maps.

Tool's build-cache-file will check resource maps for matching tag paths, and the behaviour depends on the version and arguments. HEK tool will exclude any tag data from your map that it finds in a resource map, instead referencing it as external data. You can opt out of this behaviour by temporarily moving the resource maps away. H1A Tool includes a new resource map usage argument which lets you either ignore (default), reference from, or add to resource maps. HEK users can instead use invader-resource and OpenSauce to create custom resource maps.

Using incompatible resource maps will result in glitched textures, sounds, and text.

Storing bitmaps and sounds in common files had the benefit of reducing the disk space needed for H1PC's maps because multiple maps are able to reference the same data rather than duplicating it. The other benefit is that the resource map can be swapped out with another to alter tag content without affecting the dependent maps. In the case of loc.map, the file itself contains common UI messages and prompts but varies by language of the H1CE installation. This means a custom map can be compiled once but still have localized messages when used in another language of the game, as opposed to compiling a version of the map for each language.

Compressed maps

H1X maps use zlib compression for all data following their header. Maps are decompressed into one of multiple disk caches depending on the header's scenario type.

This compression scheme is not supported natively in other releases of the game, but it is supported by the H1CE mod Chimera. Maps downloaded from HaloNet by this mod may be compressed this way. Although Chimera does not download maps to Halo's main maps directory, take care not to mix these maps with stock ones since they are not compatible with the base game and are unsupported by other mods at this time. Compressed maps can be identified using invader-info.

OpenSauce .yelo maps

Maps with the extension .yelo can only be played using the OpenSauce mod for Custom Edition, since they can contain non-standard tag groups and rely on extended game features offered by OS. These maps are created using OS_Tool. Refinery supports extracting OpenSauce tags from these maps.

Protected maps

A protected map is a map which has been intentionally corrupted by legacy tools in a way which still allows it to be loaded and played in-game, but hinders attempts to extract tags or edit it directly by removing or scrambling data like tag paths. Map protection was often used during the 2000s era of Custom Edition modding by some modders and groups to prevent others from using their content, with approximately 1/3 of legacy maps being protected in some way. This practice has in the long run negatively impacted the community because the resulting maps are crash-prone, cannot be easily be ported to newer engines like H1A, and beginners cannot extract their tags cleanly for study. H1A even explicitly checks for and refuses to load protected maps.

Both Refinery and Deathstar can "deprotect" maps in preparation for tag extraction but the results will likely still require cleanup, such as giving tags meaningful names and organization. It's recommended to use the invader toolset to work with tags extracted from protected maps because they may include corrupted data that invader can bludgeon and detect on rebuild into a new map.

Map file size limit

The maximum allowable file sizes for playable maps varies by version. Halo will reject maps if their header has a file size that exceeds this limit.

• H1X:
  • SP: 278 MiB
  • MP: 47 MiB
  • UI: 35 MiB
• H1CE: 384 MiB (Tool enforces 128 MiB for MP maps)
• H1A: 2 GiB

invader-build can be used to build cache files which exceeds the stock limits, but this may require the user to use a mod to play the map.

Tag space

The game's buffer for tag data is limited:

• H1X: 22 MiB
• H1CE and H1PC: 23 MiB
• H1A: 64 MiB

Total tag size is comprised of all non-raw tag data (ie. no bitmap or sound raw data) plus the largest BSP size, since the BSP is loaded within the tag space and there will only be a single BSP loaded at a time. Additionally, a maximum of 65535 tags can be in a map.

Tool will enforce this limit when compiling a map. Keep an eye on its console output:

total tag size is 8.43M (14.57M free)

Care should be taken not to get too close to the tag limit, because even though you may compile a map with a certain set of resource maps (e.g. the English version of the game), Halo players with different languages may actually have larger resource map tag data which now exceeds the limit and prevents your map from loading.

You can toubleshoot which tags are using the most memory by generating the baggage.txt report using the Sapien hotkey: Control + Shift + B.

H1A changes

The H1A engine makes some adjustments to the map format:

• BSP vertices are stored outside of the BSP tag and BSP data is loaded at address 0x41448000 instead of within the tag data space.
• The tag data address has been adjusted from 0x40440000 to 0x40448000.
• The maps (and other files) are compressed using a variant of zlib compression.
• Bitmaps, and sounds have been relocated from their respective bitmaps.map/sounds.map locations. The sounds are now in FMOD sound banks, and the bitmaps are stored inside ipaks.

Map loading

Within a map, tag definitions (sometimes called metadata) are stored separately any raw data used by the tag, such as sounds and bitmaps. BSP data for all BSPs is also stored in its own location. The game is able to find these locations using special headers and indexes in the map file.

Each section is loaded in a different way:

• Tag metadata is copied directly into memory at a fixed address. The game has a limited amount of tag space available for the currently loaded map. The size depends on the edition:

  • H1X: 22 MiB
  • H1PC and H1CE: 23 MiB
  • H1A: 64 MiB

  Tag metadata is loaded into the start of this region. Because this data has been preprocessed by Tool, it requires no further processing and thus is very fast to load. The address where tag data is loaded is also dependent on the edition:

  • H1X: 0x803A6000
  • H1PC Demo: 0x4BF10000
  • H1PC and H1CE: 0x40440000
  • H1A: Dynamic or 0x40448000?

• The active BSP is loaded into the end of the tag space. When a BSP switch occurs, the new BSP data is read from the map file using information stored in the scenario tag and replaces the previous data in-memory. In H1A, it is loaded at a separate dedicated location instead.

• Raw data is streamed from the map file as needed and dynamically allocated in the sound cache and texture cache. The texture cache is cleared during maps loads and BSP switches. Some tags like BSPs and scenarios contain a "predicted resources" block which hints to the game which data should be loaded into these caches.

Tags from resource maps are also loaded into the tag space as needed.

File structure

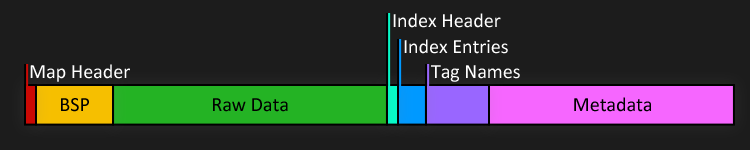

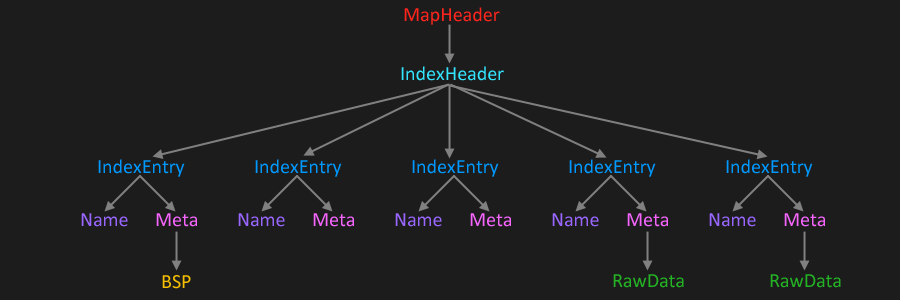

Generally map files consist of a map header section followed by BSP, model, raw data, and indexed tag definitions. The header structure and/or values vary by game. Not all maps may look like this exactly, due to map protection or differences in map compiler. All data is little-endian.

Map header

Normal playable (non-resource) cache files begin with a header which is always 2048 bytes long.

Demo map header

Demo versions of H1PC use a different cache file header structure with reordered fields and extra padding between them as a means to make it harder to port retail cache files to the demo. The header is still 2048 bytes long.

Resource map header

Tag index header

The tag index/tag data header is the start of where tag data and definitions are loaded directly into memory at runtime at the game's tag address. For most versions of the game, it looks like this:

Xbox tag index header

The H1X tag index header is slightly different since model data is also in the tag data, so it uses pointers instead of file offsets.

Tag array entry

Each 32-byte element in the tag array contains information about a tag in the map, including a pointer or resource index to the actual tag definition itself.
