scenario

This page is incomplete! You can contribute information using GitHub issues or pull requests.

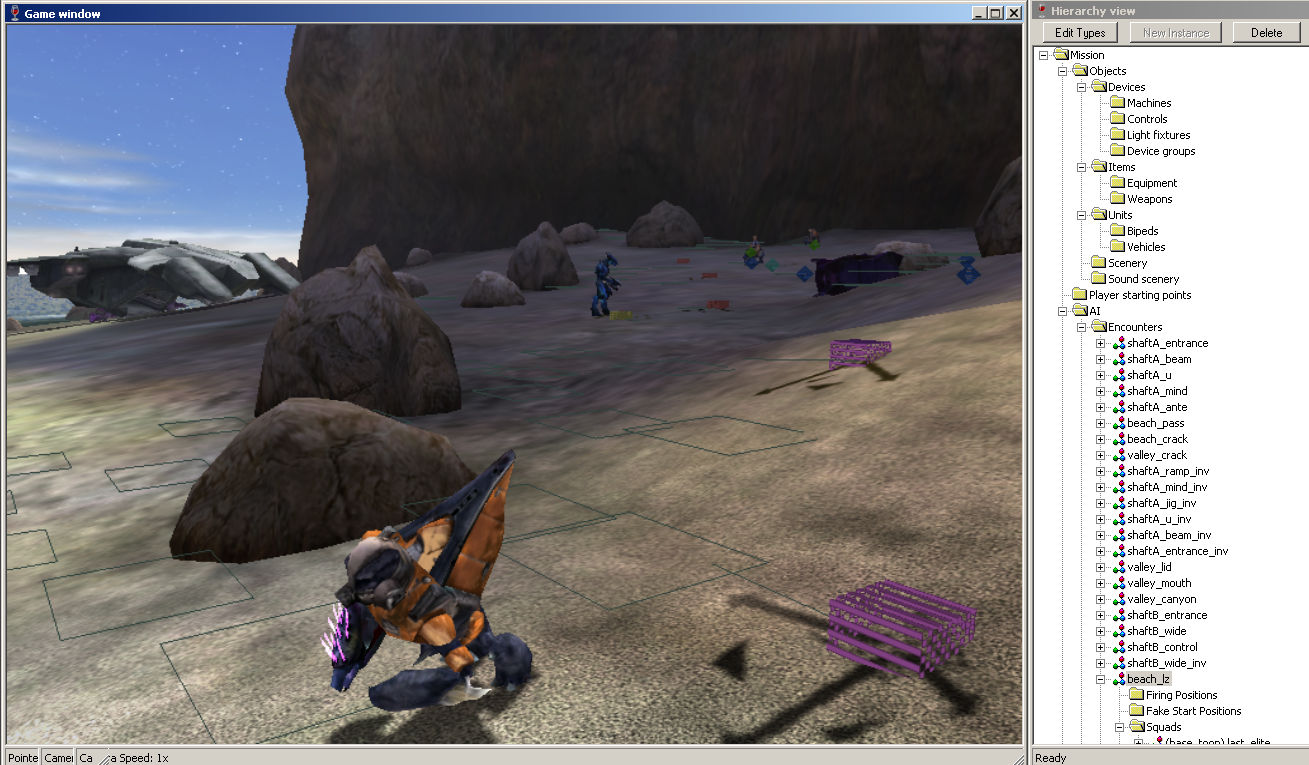

Scenarios are the main "root" tag representing a playable level. It is essential for defining all gameplay elements such as AI encounters, item spawns, multiplayer flags, scenery locations, and other objects. It may reference one or multiple scenario_structure_bsp. Level scripts, cinematics, and trigger volumes are also defined in this tag.

A scenarios can be compiled with its dependencies into a map. Though Tool will also will include globals, tag collections, and some UI tags automatically, the majority of a map's tags are direct or indirect dependencies of the scenario.

Child scenarios

Bungie did not originally author singleplayer scenarios as a single tag, but used child scenarios to break them up into multiple tags. Child scenarios are other scenario tags referenced by a parent scenario. During map compilation, Tool merges child scenarios together.

It is impossible to recreate child scenarios though tag extraction tools like Refinery and invader-extract, which can only extract the single merged scenario. This can result in issues:

For c10's scenario, Sapien's limits are exceeded and a garbage collection message is spammed in the console
Camera points, cutscene flags, and recorded animations may be duplicated if the extraction tool did not deduplicate them. This will prevent scripts from compiling. When extracting with Refinery, use the "Rename duplicate camera points, ..." option to avoid this problem.

Encounters

...

Structure and fields

Field Type Comments

don't use

TagDependency: scenario_structure_bsp

Unused

Deprecated field, hidden in H1A Guerilla.

won't use

TagDependency: scenario_structure_bsp

Unused

Deprecated field, hidden in H1A Guerilla.

can't use

TagDependency: sky

Unused

Deprecated field, hidden in H1A Guerilla.

skies

Block

HEK max count: 8

A list of skies available to clusters in this scenario's BSP(s). Level artists can select which sky is used using the special material names +sky0, +sky1, etc. See also: multiple skies. The first sky in this block also serves as the indoor sky.

Field	Type	Comments
sky	`TagDependency`: sky	A reference to a sky tag.

type

enum

Determines the type of map this scenario represents. This also causes map compilers like Tool and invader to apply certain hardcoded tag patches, but see below in H1A.

Option	Value	Comments
singleplayer	`0x0`	The map is meant to be used for singleplayer and loaded with the `map_name` command. Cannot be played in multiplayer.
multiplayer	`0x1`	The map is meant for multiplayer and can be loaded with `sv_map`.
user interface	`0x2`	The map is meant to serve as ui.map for the game's main menu.

flags bitfield

Flag	Mask	Comments
cortana hack	`0x1`
use demo ui	`0x2`
color correction ntsc to srgb	`0x4`	H1A only Unused at this time.
do not apply bungie campaign tag patches	`0x8`	H1A only Opts out of hard-coded tag patches made to the pistol and plasma rifle for singleplayer scenarios. invader-build respects this when building maps targeting Custom Edition.

child scenarios

Block

HEK max count: 16

Field	Type	Comments
child scenario	`TagDependency`: scenario	This scenario tag will be merged into the main scenario tag (and dereferenced) on map build.

local north float

predicted resources

Block

HEK max count: 1024
Cache only

Field Type Comments

type enum

Option	Value	Comments
bitmap	`0x0`
sound	`0x1`

resource index uint16

tag uint32

functions

Block

Unused
HEK max count: 32

Marked deprecated in H1A and no longer appears in H1A tools.

editor scenario data TagDataOffset

Field	Type	Comments
size	`uint32`
external	`uint32`
file offset	`uint32`
pointer	`ptr64`

comments

Block

HEK max count: 1024

Field Type Comments

position Point3D

Field	Type	Comments
x	`float`
y	`float`
z	`float`

comment TagDataOffset^?

object names

Block

HEK max count: 512
H1A-EK max count: 640
Read-only

Contains the names of all named objects in the scenario. These names are referenced by index for each type of placed object if that object is named. The console command debug_objects_names can display these. The maximum number of names was increased to 640 (from Halo 2) in H1A.

Field Type Comments

name TagString

object type

enum

Cache only

Option	Value	Comments
biped	`0x0`
vehicle	`0x1`
weapon	`0x2`
equipment	`0x3`
garbage	`0x4`
projectile	`0x5`
scenery	`0x6`
device machine	`0x7`
device control	`0x8`
device light fixture	`0x9`
placeholder	`0xA`
sound scenery	`0xB`

object index

uint16

Cache only

scenery

Block

HEK max count: 2000
Max: 65535

Field Type Comments

type uint16

name uint16→

not placed bitfield

Flag	Mask	Comments
automatically	`0x1`	This object does not exist on map start and must be created by a script.
on easy	`0x2`	Unused Has no effect on spawning. Use scripts to control difficulty-specific spawning of objects.
on normal	`0x4`	Unused
on hard	`0x8`	Unused

desired permutation uint16

position Point3D^?

rotation Euler3D

Field	Type	Comments
yaw	`float`
pitch	`float`
roll	`float`

bsp indices

uint16

Cache only

unused in Halo PC; bitmask

scenery palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: scenery	Non-null

bipeds

Block

HEK max count: 128

Special-purpose bipeds placed in the map, typically used for scripted characters and cutscenes. AI should instead be spawned using encounters, since the actors will be properly difficulty-scaled. Although there is technically a very high limit to this block, unmodified Sapien only supports up to 128 bipeds being placed.

Field Type Comments

type uint16

name uint16→

not placed bitfield^?

desired permutation uint16

position Point3D^?

rotation Euler3D^?

body vitality modifier

float

Min: 0

flags bitfield

Flag	Mask	Comments
dead	`0x1`

biped palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: biped	Non-null

vehicles

Block

HEK max count: 80
H1A-EK max count: 256

Vehicle spawn points, which can be used for both singleplayer and multiplayer modes. Netgame flags are used in race mode. The limit was raised to 256 in H1A.

Field Type Comments

type uint16

name uint16→

not placed bitfield^?

desired permutation uint16

position Point3D^?

rotation Euler3D^?

body vitality

float

Min: 0
Max: 1

flags bitfield^?

multiplayer team index

int8

Determines which team the vehicle belongs to for gametype settings. Index 0 is for red team, and index 1 is blue.

multiplayer spawn flags bitfield

Flag	Mask	Comments
slayer default	`0x1`	The vehicle will spawn in Slayer when the gametype specifies default vehicle settings.
ctf default	`0x2`	The vehicle will spawn in CTF when the gametype specifies default vehicle settings.
king default	`0x4`	The vehicle will spawn in King of the Hill when the gametype specifies default vehicle settings.
oddball default	`0x8`	The vehicle will spawn in Oddball when the gametype specifies default vehicle settings.
unused	`0x10`
unused1	`0x20`
unused2	`0x40`
unused3	`0x80`
slayer allowed	`0x100`	The vehicle spawn is permitted in Slayer when the gametype is using custom vehicle settings.
ctf allowed	`0x200`	The vehicle spawn is permitted in CTF when the gametype is using custom vehicle settings.
king allowed	`0x400`	The vehicle spawn is permitted in King of the Hill when the gametype is using custom vehicle settings.
oddball allowed	`0x800`	The vehicle spawn is permitted in Oddball when the gametype is using custom vehicle settings.
unused4	`0x1000`
unused5	`0x2000`
unused6	`0x4000`
unused7	`0x8000`

vehicle palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: vehicle	Non-null

equipment

Block

HEK max count: 256
Max: 65535

Field Type Comments

type uint16

name uint16→

not placed bitfield^?

desired permutation uint16

position Point3D^?

rotation Euler3D^?

flags bitfield

Flag	Mask	Comments
initially at rest	`0x1`
obsolete	`0x2`
does accelerate	`0x4`	Can be moved by impulses like explosions. Grenades with this flag can be detonated.

equipment palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: equipment	Non-null

weapons

Block

HEK max count: 128
Max: 65535

Weapon placements for singeplayer. Multiplayer weapon spawns should be placed using netgame equipment instead.

Field	Type	Comments
type	`uint16`
name	`uint16`→
not placed	`bitfield`^?
desired permutation	`uint16`
position	`Point3D`^?
rotation	`Euler3D`^?
rounds reserved	`uint16`	does not include loaded rounds; cannot go above maximum rounds
rounds loaded	`uint16`
flags	`bitfield`^?

weapon palette

Block

HEK max count: 100
H1A-EK max count: 256

The types of weapons that can be placed throughout a singeplayer scenario.

Field	Type	Comments
name	`TagDependency`: weapon	Non-null

device groups

Block

HEK max count: 128
Max: 65534

Field Type Comments

name

TagString

Non-null

initial value

float

Min: 0
Max: 1

flags bitfield

Flag	Mask	Comments
can change only once	`0x1`

machines

Block

HEK max count: 400
Max: 65535

Field Type Comments

type uint16

name uint16→

not placed bitfield^?

desired permutation uint16

position Point3D^?

rotation Euler3D^?

power group uint16→

position group uint16→

device flags bitfield

Flag	Mask	Comments
initially open	`0x1`
initially off	`0x2`
can change only once	`0x4`
position reversed	`0x8`
not usable from any side	`0x10`

machine flags bitfield

Flag	Mask	Comments
does not operate automatically	`0x1`	Disables the automatic door feature.
one sided	`0x2`	Prevents allies from automatically opening a door when on its "forward" side. May have other effects.
never appears locked	`0x4`
opened by melee attack	`0x8`

machine palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: device_machine	Non-null

controls

Block

HEK max count: 100
Max: 65535

Field Type Comments

type uint16

name uint16→

not placed bitfield^?

desired permutation uint16

position Point3D^?

rotation Euler3D^?

power group uint16→

position group uint16→

device flags bitfield^?

control flags bitfield

Flag	Mask	Comments
usable from both sides	`0x1`

no name int16

control palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: device_control	Non-null

light fixtures

Block

HEK max count: 500
Max: 65535

Field	Type	Comments
type	`uint16`
name	`uint16`→
not placed	`bitfield`^?
desired permutation	`uint16`
position	`Point3D`^?
rotation	`Euler3D`^?
bsp indices	`uint16`	Cache only unused in Halo PC; bitmask
power group	`uint16`→
position group	`uint16`→
device flags	`bitfield`^?
color	`ColorRGB`
intensity	`float`
falloff angle	`float`
cutoff angle	`float`

light fixture palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: device_light_fixture	Non-null

sound scenery

Block

HEK max count: 256
Max: 65535

Field	Type	Comments
type	`uint16`
name	`uint16`→
not placed	`bitfield`^?
desired permutation	`uint16`
position	`Point3D`^?
rotation	`Euler3D`^?

sound scenery palette

Block

HEK max count: 100
H1A-EK max count: 256

Field	Type	Comments
name	`TagDependency`: sound_scenery	Non-null

player starting profile

Block

HEK max count: 256

Field	Type	Comments
name	`TagString`
starting health modifier	`float`	Min: 0 Max: 1
starting shield modifier	`float`	Min: 0 Max: 3 Values above 1 give Overshield layers.
primary weapon	`TagDependency`: weapon
primary rounds loaded	`uint16`
primary rounds reserved	`uint16`	does not include loaded ammo; can go above maximum rounds
secondary weapon	`TagDependency`: weapon
secondary rounds loaded	`uint16`
secondary rounds reserved	`uint16`	does not include loaded ammo; can go above maximum rounds
starting fragmentation grenade count	`int8`
starting plasma grenade count	`int8`
starting unknown grenade count 1	`int8`
starting unknown grenade count 2	`int8`

player starting locations

Block

HEK max count: 256

Field Type Comments

position Point3D^?

facing float

team index uint16

bsp index

uint16→

Unused

The game does not read from this field. It is hidden in H1A Guerilla.

type 0 enum

Option	Value	Comments
none	`0x0`
ctf	`0x1`
slayer	`0x2`
oddball	`0x3`
king of the hill	`0x4`
race	`0x5`
terminator	`0x6`
stub	`0x7`
ignored1	`0x8`
ignored2	`0x9`
ignored3	`0xA`
ignored4	`0xB`
all games	`0xC`
all except ctf	`0xD`
all except race ctf	`0xE`

type 1 enum^?

type 2 enum^?

type 3 enum^?

trigger volumes

Block

HEK max count: 256
Max: 65534

Cuboid volumes which can be used in scripts to test for the presence an object: (volume_test_object "volume_name" <object>). An example use case is kill volumes.

Field	Type	Comments
unknown	`uint16`
name	`TagString`	The name of the volume which can be used in scripts.
float 1	`float`
float 2	`float`
float 3	`float`
float 4	`float`
float 5	`float`
float 6	`float`
float 7	`float`
float 8	`float`
float 9	`float`
starting corner	`Point3D`^?	The 3D world-unit coordinates of one corner of the volume.
ending corner offset	`Point3D`^?	The offset distances from the starting corner to the opposite corner.

recorded animations

Block

HEK max count: 1024

Field	Type	Comments
name	`TagString`
version	`int8`
raw animation data	`int8`
unit control data version	`int8`
length of animation	`uint16`
recorded animation event stream	`TagDataOffset`^?

netgame flags

Block

HEK max count: 200

Multiplayer game mode markers like flag locations, oddball spawns, and teleporters.

Field Type Comments

position

Point3D^?

The location in 3D space of this netgame flag.

facing

float

The direction that the netgame flag faces (yaw). How this is used depends on the type of the flag.

type

enum

Determines which purpose this netgame flag serves.

Option	Value	Comments
ctf flag	`0x0`	Two netgame flags should be placed for the CTF flags, with red team's flag using team index `0`, and blue team `1`. The facing value is not used to orient the flag pole (the skull faces in the world's +X direction). Be careful not to place the CTF flags on the wrong side of the map or it may prevent players from spawning.
ctf vehicle	`0x1`	Unused.
oddball ball spawn	`0x2`	Halo's oddball gamemode settings allow up to 16 simultaneous oddballs, so maps should include 16 unique oddball spawns. The oddball will spawn facing the world +X direction regardless of the facing field. Use team index `0` for the first oddball spawn, which should be in a team-neutral location of the map. Increment the team index for each subsequent oddball spawn (up to index `15`). Halo will spawn balls at each flag in order of their index, so ensure flags are alternated across the map to prevent an unfair advantage to a team already occupying an area.
race track	`0x3`	Determines the checkpoints for race game modes. The game supports up to 32 race track points. The team index should be numbered sequentially without gaps, starting at `0` in a team-neutral location. In Rally mode, checkpoints will be selected in random order.
race vehicle	`0x4`	Used by Halo to spawn vehicles near players at the start of Race games, so you should place up to 16 of them near player spawn points used for Race. Team index is not used. The green marker handle should be pointed in the direction the vehicle will face forward.
vegas bank	`0x5`	Unused.
teleport from	`0x6`	Teleporter entry node. Team index determines the "channel" and links entry and exit nodes together.
teleport to	`0x7`	Teleporter exit node. Team index determines the "channel" and links entry and exit nodes together. The difference in facing direction (yaw) between the entry and exit nodes is added to the player's yaw to determine their facing direction on exit. For example, if the entry node's facing is -90 degrees and the exit's is 0 degrees (a difference of +90 degrees), then a player entering the teleporter facing North would exit facing East.
hill flag	`0x8`	Defines the boundaries of a King mode hill. Each hill should be placed as a series of 3-8 hill flags with the same team index, with index `0` being the default for non-moving hill mode. At least two hills should be placed to support moving hill mode. The facing field is not used.

usage id

uint16

Also called team_index in legacy HEK. The meaning of this field depends on the netgame flag type, and is not necessarily about teams. See the above type descriptions for more details on usage.

weapon group

TagDependency: item_collection

Unused

Unused by the game. Hidden in H1A tools.

netgame equipment

Block

HEK max count: 200

Processed during compile

Field Type Comments

flags bitfield

Flag	Mask	Comments
levitate	`0x1`

type 0 enum^?

type 1 enum^?

type 2 enum^?

type 3 enum^?

team index uint16

spawn time

uint16

Unit: seconds

0 = use default spawn time in item_collection

unknown ffffffff

uint32

Cache only: true

always 0xFFFFFFFF?

position Point3D^?

facing float

item collection TagDependency: item_collection

starting equipment

Block

HEK max count: 200

Field Type Comments

flags bitfield

Flag	Mask	Comments
no grenades	`0x1`
plasma grenades	`0x2`

type 0 enum^?

type 1 enum^?

type 2 enum^?

type 3 enum^?

item collection 1 TagDependency: item_collection

item collection 2 TagDependency: item_collection

item collection 3 TagDependency: item_collection

item collection 4 TagDependency: item_collection

item collection 5 TagDependency: item_collection

item collection 6 TagDependency: item_collection

bsp switch trigger volumes

Block

HEK max count: 256
Cache only
Expert mode only

Field	Type	Comments
trigger volume	`uint16`→
source	`uint16`→	The source BSP, stored as an index into the scenario BSPs block.
destination	`uint16`→	The destination BSP, stored as an index into the scenario BSPs block.
unknown	`uint16`

decals

Block

HEK max count: 65536

Field	Type	Comments
decal type	`uint16`→
yaw	`int8`
pitch	`int8`
position	`Point3D`^?

decal palette

Block

HEK max count: 128

Field	Type	Comments
reference	`TagDependency`: decal

detail object collection palette

Block

HEK max count: 32

Field	Type	Comments
reference	`TagDependency`: detail_object_collection

actor palette

Block

HEK max count: 64

Field	Type	Comments
reference	`TagDependency`: actor_variant

encounters

Block

HEK max count: 128

Field Type Comments

name TagString

flags bitfield

Flag	Mask	Comments
not initially created	`0x1`
respawn enabled	`0x2`
initially blind	`0x4`
initially deaf	`0x8`
initially braindead	`0x10`
3d firing positions	`0x20`
manual bsp index specified	`0x40`

team index enum

Option	Value	Comments
default by unit	`0x0`	Uses the default team defined in the unit's biped tag.
player	`0x1`
human	`0x2`
covenant	`0x3`
flood	`0x4`
sentinel	`0x5`
unused6	`0x6`
unused7	`0x7`
unused8	`0x8`
unused9	`0x9`

one

int16

Cache only

search behavior enum

Option	Value	Comments
normal	`0x0`
never	`0x1`
tenacious	`0x2`

manual bsp index uint16→

respawn delay

Bounds

Unit: seconds

Field	Type	Comments
min	`float`
max	`float`

precomputed bsp index

uint16

Cache only

squads

Block

HEK max count: 64

Field Type Comments

name TagString

actor type uint16→

platoon uint16→

initial state

enum

The squad's or unit's behaviour when initially placed.

Option	Value	Comments
none	`0x0`	Retain behaviour previously defined. Used for starting locations, or empty squads meant for migration.
sleeping	`0x1`	Actors will only be alerted by sounds or physical contact, and will use sleeping animations if they have any.
alert	`0x2`	Actors will stand still and look forward.
moving repeat same position	`0x3`	These and the following behaviours use move positions defined in squad data to determine where to move. Use casual walking animations if applicable.
moving loop	`0x4`
moving loop back and forth	`0x5`
moving loop randomly	`0x6`
moving randomly	`0x7`
guarding	`0x8`	Choose one guard firing position and move there, remaining alert afterward.
guarding at guard position	`0x9`	Randomly move between guard firing positions, using running animations.
searching	`0xA`	Randomly move between search firing positions, using searching walking animations.
fleeing	`0xB`	Randomly move between firing positions, using fleeing animations.

return state

enum^?

The squad's or unit's behaviour when it has been alerted but has since completely lost track of any living enemies.

flags bitfield

Flag	Mask	Comments
unused	`0x1`
never search	`0x2`
start timer immediately	`0x4`
no timer delay forever	`0x8`
magic sight after timer	`0x10`
automatic migration	`0x20`

unique leader type enum

Option	Value	Comments
normal	`0x0`
none	`0x1`
random	`0x2`
sgt johnson	`0x3`
sgt lehto	`0x4`

maneuver to squad

uint16

What squad to switch to when maneuvering is triggered, whether by platoon conditions or by a script.

squad delay time float

attacking

bitfield

Which firing positions to use when shooting at enemies. Actors will further discriminate between firing positions based on cover provided, proximity of allies or foes, etc.

Flag	Mask	Comments
a	`0x1`
b	`0x2`
c	`0x4`
d	`0x8`
e	`0x10`
f	`0x20`
g	`0x40`
h	`0x80`
i	`0x100`
j	`0x200`
k	`0x400`
l	`0x800`
m	`0x1000`
n	`0x2000`
o	`0x4000`
p	`0x8000`
q	`0x10000`
r	`0x20000`
s	`0x40000`
t	`0x80000`
u	`0x100000`
v	`0x200000`
w	`0x400000`
x	`0x800000`
y	`0x1000000`
z	`0x2000000`

attacking search

bitfield^?

Which firing positions to use when looking for a target that's broken line of sight with the squad.

attacking guard

bitfield^?

Which firing positions to use for the inital/return states "guarding" or "guarding at guard position".

defending

bitfield^?

As above, but used in the defending state.

defending search bitfield^?

defending guard bitfield^?

pursuing

bitfield^?

While game code does reference these, it's not known how and when they're used.

normal diff count

uint16

How many actors to spawn on Easy and Normal.

insane diff count

uint16

How many actors to spawn on Legendary. Heroic uses the average of this and the previous value.

major upgrade

enum

Along with difficulty level, influences how many actors in the squad will spawn as their major variants instead.

Option	Value	Comments
normal	`0x0`
few	`0x1`
many	`0x2`
none	`0x3`
all	`0x4`

respawn min actors uint16

respawn max actors uint16

respawn total uint16

respawn delay

Bounds^?

Unit: seconds

move positions

Block

HEK max count: 64

Used for actor initial and return states, eg as patrol routes.

Field	Type	Comments
position	`Point3D`^?
facing	`float`
weight	`float`
time	`Bounds`^?	Unit: seconds
animation	`uint16`→
sequence id	`int8`
cluster index	`uint16`	Cache only
surface index	`uint32`	Cache only

starting locations

Block

HEK max count: 32

Squads need at least one valid starting position for units to spawn. If there are more units than valid locations, they will be reused.

Field Type Comments

position Point3D^?

facing float

cluster index

uint16

Cache only

sequence id int8

flags bitfield

Flag	Mask	Comments
required	`0x1`

return state enum^?

initial state enum^?

actor type uint16→

command list uint16→

platoons

Block

HEK max count: 32

Field Type Comments

name TagString

flags bitfield

Flag	Mask	Comments
flee when maneuvering	`0x1`
say advancing when maneuver	`0x2`
start in defending state	`0x4`

change attacking defending state when enum

Strength is the fraction of total HP across all members of the platoon.

Option	Value	Comments
never	`0x0`
75 strength	`0x1`
50 strength	`0x2`
25 strength	`0x3`
anybody dead	`0x4`
25 dead	`0x5`
50 dead	`0x6`
75 dead	`0x7`
all but one dead	`0x8`
all dead	`0x9`

happens to uint16→

maneuver when enum^?

happens to 1 uint16→

firing positions

Block

HEK max count: 512

Processed during compile

Field Type Comments

position Point3D^?

group index enum

Option	Value	Comments
a	`0x0`
b	`0x1`
c	`0x2`
d	`0x3`
e	`0x4`
f	`0x5`
g	`0x6`
h	`0x7`
i	`0x8`
j	`0x9`
k	`0xA`
l	`0xB`
m	`0xC`
n	`0xD`
o	`0xE`
p	`0xF`
q	`0x10`
r	`0x11`
s	`0x12`
t	`0x13`
u	`0x14`
v	`0x15`
w	`0x16`
x	`0x17`
y	`0x18`
z	`0x19`

cluster index

uint16

Cache only

surface index

uint32

Cache only

player starting locations

Block^?

HEK max count: 256

command lists

Block

HEK max count: 256

Sets of predefined actions for actors to take upon being spawned.

Field Type Comments

name TagString

flags bitfield

Flag	Mask	Comments
allow initiative	`0x1`
allow targeting	`0x2`
disable looking	`0x4`
disable communication	`0x8`
disable falling damage	`0x10`
manual bsp index	`0x20`

manual bsp index uint16→

precomputed bsp index

uint16

Cache only

commands

Block

HEK max count: 64
Max: 65534

Field Type Comments

atom type enum

Option	Value	Comments
pause	`0x0`
go to	`0x1`
go to and face	`0x2`
move in direction	`0x3`
look	`0x4`
animation mode	`0x5`
crouch	`0x6`
shoot	`0x7`
grenade	`0x8`
vehicle	`0x9`
running jump	`0xA`
targeted jump	`0xB`
script	`0xC`
animate	`0xD`
recording	`0xE`
action	`0xF`
vocalize	`0x10`
targeting	`0x11`
initiative	`0x12`
wait	`0x13`
loop	`0x14`
die	`0x15`
move immediate	`0x16`
look random	`0x17`
look player	`0x18`
look object	`0x19`
set radius	`0x1A`
teleport	`0x1B`

atom modifier int16

parameter1 float

parameter2 float

point 1 uint16→

point 2 uint16→

animation uint16→

script uint16→

recording uint16→

command uint16→

object name uint16→

points

Block

HEK max count: 64
Max: 65534

Field	Type	Comments
position	`Point3D`^?
surface index	`uint32`	Cache only

ai animation references

Block

HEK max count: 128

Field	Type	Comments
animation name	`TagString`
animation graph	`TagDependency`: model_animations

ai script references

Block

HEK max count: 128

Field	Type	Comments
script name	`TagString`

ai recording references

Block

HEK max count: 128

Field	Type	Comments
recording name	`TagString`

ai conversations

Block

HEK max count: 128

Field Type Comments

name TagString

flags bitfield

Flag	Mask	Comments
stop if death	`0x1`
stop if damaged	`0x2`
stop if visible enemy	`0x4`
stop if alerted to enemy	`0x8`
player must be visible	`0x10`
stop other actions	`0x20`
keep trying to play	`0x40`
player must be looking	`0x80`

trigger distance

float

Unit: seconds

run to player dist

float

Unit: seconds

participants

Block

HEK max count: 8

Field Type Comments

flags bitfield

Flag	Mask	Comments
optional	`0x1`
has alternate	`0x2`
is alternate	`0x4`

selection type enum

Option	Value	Comments
friendly actor	`0x0`
disembodied	`0x1`
in player s vehicle	`0x2`
not in a vehicle	`0x3`
prefer sergeant	`0x4`
any actor	`0x5`
radio unit	`0x6`
radio sergeant	`0x7`

actor type enum

Option	Value	Comments
elite	`0x0`	Uses the elite actor type definition.
jackal	`0x1`	Uses the jackal actor type definition.
grunt	`0x2`	Uses the grunt actor type definition.
hunter	`0x3`	Uses the hunter actor type definition.
engineer	`0x4`	Uses the engineer actor type definition.
assassin	`0x5`	Uses the elite actor type definition (duplicate).
player	`0x6`	Uses the marine actor type definition (duplicate).
marine	`0x7`	Uses the marine actor type definition.
crew	`0x8`	Uses the crew actor type definition.
combat form	`0x9`	Uses the flood actor type definition.
infection form	`0xA`	Uses the infection actor type definition.
carrier form	`0xB`	Uses the flood carrier actor type definition.
monitor	`0xC`	Uses the sentinel actor type definition (duplicate).
sentinel	`0xD`	Uses the sentinel actor type definition.
none	`0xE`	Uses the grunt actor type definition.
mounted weapon	`0xF`	Uses the mounted_weapon actor type definition.

use this object uint16→

set new name uint16→

variant numbers

uint16[6]

Cache only

Determines which kind of variant gets a given line. By default, this matches by tag path (bisenti = 2, fitzgerald/jenkins = 4, aussie = 5, mendoza = 6, sarge/johnson = 100, sarge2/lehto = 101, everything else = 0, null = 65535)

encounter name TagString

encounter index

uint32

Cache only

lines

Block

HEK max count: 32

Field Type Comments

flags bitfield

Flag	Mask	Comments
addressee look at speaker	`0x1`
everyone look at speaker	`0x2`
everyone look at addressee	`0x4`
wait after until told to advance	`0x8`
wait until speaker nearby	`0x10`
wait until everyone nearby	`0x20`

participant uint16→

addressee enum→

Option	Value	Comments
none	`0x0`
player	`0x1`
participant	`0x2`

addressee participant uint16→

line delay time float

variant 1 TagDependency: sound

variant 2 TagDependency: sound

variant 3 TagDependency: sound

variant 4 TagDependency: sound

variant 5 TagDependency: sound

variant 6 TagDependency: sound

script syntax data

TagDataOffset^?

HEK max count: 19001
H1A-EK max count: SHORT_MAX

Stores the compiled syntax node data for scripts.

script string data

TagDataOffset^?

HEK max size: 256kb
H1A-EK max size: 800kb

Stores strings used by scripts.

scripts

Block

HEK max count: 512
H1A-EK max count: 1024
Read-only
Expert mode only

Read-only

Field Type Comments

name TagString

script type enum

Option	Value	Comments
startup	`0x0`
dormant	`0x1`
continuous	`0x2`
static	`0x3`
stub	`0x4`

return type enum

Option	Value	Comments
unparsed	`0x0`
special form	`0x1`
function name	`0x2`
passthrough	`0x3`
void	`0x4`
boolean	`0x5`
real	`0x6`
short	`0x7`
long	`0x8`
string	`0x9`
script	`0xA`
trigger volume	`0xB`
cutscene flag	`0xC`
cutscene camera point	`0xD`
cutscene title	`0xE`
cutscene recording	`0xF`
device group	`0x10`
ai	`0x11`
ai command list	`0x12`
starting profile	`0x13`
conversation	`0x14`
navpoint	`0x15`
hud message	`0x16`
object list	`0x17`
sound	`0x18`
effect	`0x19`
damage	`0x1A`
looping sound	`0x1B`
animation graph	`0x1C`
actor variant	`0x1D`
damage effect	`0x1E`
object definition	`0x1F`
game difficulty	`0x20`
team	`0x21`
ai default state	`0x22`
actor type	`0x23`
hud corner	`0x24`
object	`0x25`
unit	`0x26`
vehicle	`0x27`
weapon	`0x28`
device	`0x29`
scenery	`0x2A`
object name	`0x2B`
unit name	`0x2C`
vehicle name	`0x2D`
weapon name	`0x2E`
device name	`0x2F`
scenery name	`0x30`

root expression index int32

globals

Block

HEK max count: 128
H1A-EK max count: 512
Read-only
Expert mode only

Read-only

Field	Type	Comments
name	`TagString`
type	`enum`^?
initialization expression index	`int32`

references

Block

HEK max count: 256
H1A-EK max count: 512
Read-only
Expert mode only

Stores tag references used by compiled level scripts. In source form, scripts use tag paths but for runtime those paths are compiled to references here.

Read-only

Field	Type	Comments
reference	`TagDependency`: (any)

source files

Block

HEK max count: 8
HEK max size: 256 KiB
H1A-EK max count: 16
H1A-EK max size: 1 MiB
Non-cached
Volatile
Read-only

Read-only

Field	Type	Comments
name	`TagString`
source	`TagDataOffset`^?

cutscene flags

Block

HEK max count: 512

Field Type Comments

unknown

uint32

Cache only

name TagString

position Point3D^?

facing Euler2D

Field	Type	Comments
yaw	`float`	Rotation to the left or right around the Z (vertical) axis.
pitch	`float`	Rotation up or down.

cutscene camera points

Block

HEK max count: 512

Field	Type	Comments
unknown	`uint32`	Cache only
name	`TagString`
position	`Point3D`^?
orientation	`Euler3D`^?
field of view	`float`

cutscene titles

Block

HEK max count: 64

Processed during compile

Field Type Comments

unknown

uint32

Cache only

name TagString

text bounds Rectangle2D

Field	Type	Comments
top	`int16`
left	`int16`
bottom	`int16`
right	`int16`

string index uint16

text style

enum

Sets the title text style. This field is hidden in HEK Guerilla, but visible in H1A Guerilla.

Option	Value	Comments
plain	`0x0`
bold	`0x1`
italic	`0x2`
condense	`0x3`
underline	`0x4`

justification enum

Option	Value	Comments
left	`0x0`
right	`0x1`
center	`0x2`

text flags

bitfield

Positioning flags for the title. This field is hidden in HEK Guerilla, but visible in H1A Guerilla.

Flag	Mask	Comments
wrap horizontally	`0x1`
wrap vertically	`0x2`
center vertically	`0x4`
bottom justify	`0x8`

text color ColorARGBInt

RGB Color with alpha, with 8-bit color depth per channel (0-255)

Field	Type	Comments
alpha	`uint8`
red	`uint8`
green	`uint8`
blue	`uint8`

shadow color ColorARGBInt^?

fade in time float

up time float

fade out time float

custom object names TagDependency: unicode_string_list

ingame help text TagDependency: unicode_string_list

hud messages TagDependency: hud_message_text

structure bsps

Block

HEK max count: 32
Max: 16

The list of BSPs belonging to this scenario that can be switched between. Multiplayer scenarios typically have just one, while singleplayer scenarios often have multiple. This block also contains information used during map loading.

Field	Type	Comments
bsp start	`uint32`	Cache only
bsp size	`uint32`	Cache only
bsp address	`uint32`	Cache only
structure bsp	`TagDependency`: scenario_structure_bsp

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

Jakey (Sharing knowledge on child scenarios)
Kavawuvi (Invader tag definitions)
Masterz1337 (Encounters vs bipeds)
MosesOfEgypt (Tag structure research)
