lens_flare

Lens flares are a visual effect used to emulate glowing light sources, glare, and camera lens flares. They can be used in 3 ways:

By a light tag which may be attached to an object or effect. Lens flares belonging to attached lights on objects can be scaled by a function.
By a sky light, used for the cinematic looking camera lens flares on the sun.
By shaders which generate BSP lens flares into a level for static light sources.

Lens flares usually contain one or multiple reflections, which are indices of a bitmap rendered along a flare axis which passes through the flare and the center of the screen.

Ray of Buddha

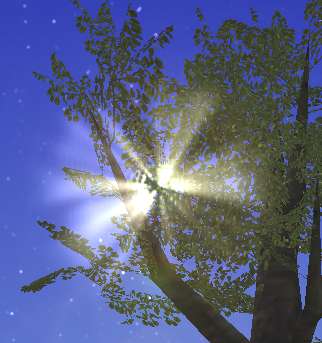

The "Ray of Buddha" effect is a glowing disk of light that simulates light beams when obstructed by the BSP and objects within it (even by alpha-tested transparent textures like foliage). This effect will appear if either the sun flag is set or occlusion radius is set to 50.

Halo supports multiple Rays of Buddha drawing simultaneously, seemingly for as many lens flares can render. However, it does not support distance-based fading and will simply pop in or out at the tag's far fade distance if set.

The appearance of Ray of Buddha is partially hard-coded. You can change its radius using occlusion radius. The shape and fade of the flare are controlled by the globals glow bitmap. Its yellowish tint is hard-coded in the sun_glow_draw.psh FX shader.

	Function/global	Type
	`(rasterizer_lens_flares [boolean])` Toggles rendering of all lens flares.	Global
	`(rasterizer_lens_flares_occlusion [boolean])` Toggles lens flare occlusion. If set to `false`, lens flares will no longer be occluded and stay visible even through objects in the foreground.	Global
	`(rasterizer_lens_flares_occlusion_debug [boolean])` Displays red squares over lens flares in the environment. How much the square is occluded by other geometry or the view frustrum is how much the lens flare fades out. The size of the square relates to the occlusion radius.	Global
	`(rasterizer_ray_of_buddha [boolean])` Toggles the lens flare "god rays" effect, present on sky lights or lens flares explicitly set to sun.	Global

Structure and fields

Field Type Comments

falloff angle float

cutoff angle float

cos falloff angle

float

Cache only

cos cutoff angle

float

Cache only

occlusion radius

float

Unit: world units

Primarily controls the size of the camera-facing occlusion square. The more this square is covered, the more the lens flare fades out. A larger radius covers more screen space and gradually fades in/out while passing behind objects in the foreground, while a small radius will cause the lens flare to quickly appear or disappear. The square can be visualized with rasterizer_lens_flares_occlusion_debug 1.

This also controls how far the test square is moved depending on the occlusion offset direction.

This field also interacts with the Ray of Buddha effect, controlling its radius when the sun flag is set. However if this radius is set to exactly 50 then the sun flag will be implied and Ray of Buddha will render too.

occlusion offset direction

enum

Controls which direction the lens flare is offset. Ignored by the Ray of Buddha effect if this tag's sun flag is set, which always uses a marker forward offset.

Option Value Comments

toward viewer

0x0

The occlusion test square is moved towards the viewer by the occlusion radius. This avoids the test square being always half-embedded if the lens flare is placed directly on a surface.

However, this offsets the test square perpendicularly toward the camera's view plane, not toward the camera location itself. This results in test squares near the edges of the screen not aligning with their lens flares, causing them to fade out even while on-screen. Avoid setting this value too high to make this less apparent.

marker forward

0x1

The test square is moved in the "forward" direction of the marker by the occlusion radius, usually off the surface in the case of BSP lens flares.

none

0x2

The test square is not offset.

near fade distance

float

Unit: world units

The distance where the lens flare begins to fade out.

far fade distance

float

Unit: world units

The distance where the lens flare becomes invisible. Distance-based fading is disabled when set to 0.

bitmap TagDependency: bitmap

flags bitfield

Flag	Mask	Comments
sun	`0x1`	If set, gives this lens flare a Ray of Buddha effect. This flag is already implied for any lens flare with occlusion radius of `50` (typically used by sky lights).
no occlusion test	`0x2`	If enabled, skips checking if this lens flare is occluded. It will render regardless of any obstructions in the way like BSP. This also prevents reflections from fading out when the flare's origin goes off-screen.

rotation function enum

Option	Value	Comments
none	`0x0`
rotation a	`0x1`
rotation b	`0x2`
rotation translation	`0x3`
translation	`0x4`

rotation function scale

float

Default: 360

Yes, the default is indeed 360 radians.

horizontal scale

float

Default: 1

Scales the lens flare's first reflection horizontally by this factor. Ignored and assumed 1 if this is set to 0.

vertical scale

float

Default: 1

Scales the lens flare's first reflection vertically by this factor. Ignored and assumed 1 if this is set to 0.

reflections

Block

HEK max count: 32

Field Type Comments

flags bitfield

Flag	Mask	Comments
align rotation with screen center	`0x1`
radius not scaled by distance	`0x2`
radius scaled by occlusion factor	`0x4`
occluded by solid objects	`0x8`

bitmap index uint16

position

float

Unit: along flare axis

rotation offset float

radius

Bounds

Unit: world units

Field	Type	Comments
min	`float`
max	`float`

radius scaled by enum

Option	Value	Comments
none	`0x0`
rotation	`0x1`
rotation and strafing	`0x2`
distance from center	`0x3`

brightness

Bounds

Min: 0
Max: 1

Field	Type	Comments
min	`float`
max	`float`

brightness scaled by enum^?

tint color ColorARGB

Field	Type	Comments
alpha	`float`
red	`float`
green	`float`
blue	`float`

color lower bound ColorARGB^?

color upper bound ColorARGB^?

more flags bitfield

Flag	Mask	Comments
interpolate colors in hsv	`0x1`
more colors	`0x2`

animation function enum

Option	Value	Comments
one	`0x0`
zero	`0x1`
cosine	`0x2`
cosine variable period	`0x3`
diagonal wave	`0x4`
diagonal wave variable period	`0x5`
slide	`0x6`
slide variable period	`0x7`
noise	`0x8`
jitter	`0x9`
wander	`0xA`
spark	`0xB`

animation period

float

Unit: world units
Default: 1

animation phase

float

Unit: world units

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

Conscars (Tag field testing)
Kavawuvi (Invader tag definitions)
MosesOfEgypt (Tag structure research)
