Setting up Blender

Installing the Blender addon

See the above link for setting up the Blender addon for exporting Halo assets if you haven't installed the addon already. Beyond that there may be a few other settings you may want to adjust with before starting with any modeling.

Undo count

Consider increasing the number of edits you can undo in Blender by changing the setting in preferences. Be aware that increasing this setting will use up more of your system RAM, so keep the value reasonable.

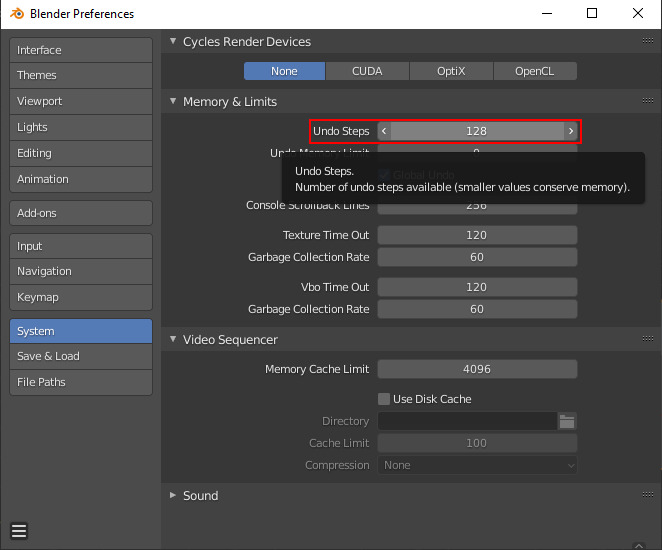

Undo steps setting of 128.

Hotkeys

There will probably be certain Blender functions you will be using repeatedly so it's probably a good idea to setup some quick hotkeys for important functions. You could do this later if you're not sure what you need now.

Unit measurement

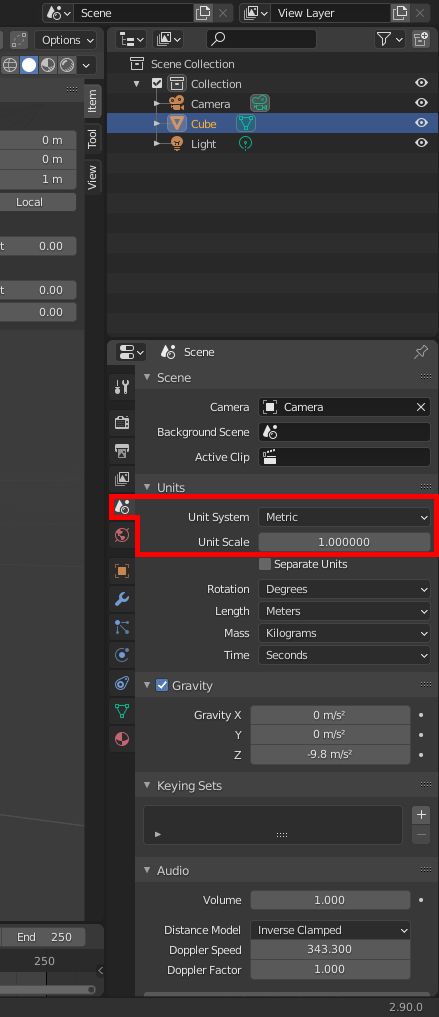

All units given in this guide are given with the expectation that your Blender instance is set to use metric units. If you haven't changed this then it's likely already set to metric by default. All units will also be given with the expectation that you are using global transforms.

Use the default settings or I'm coming for those kneecaps.

Scene options

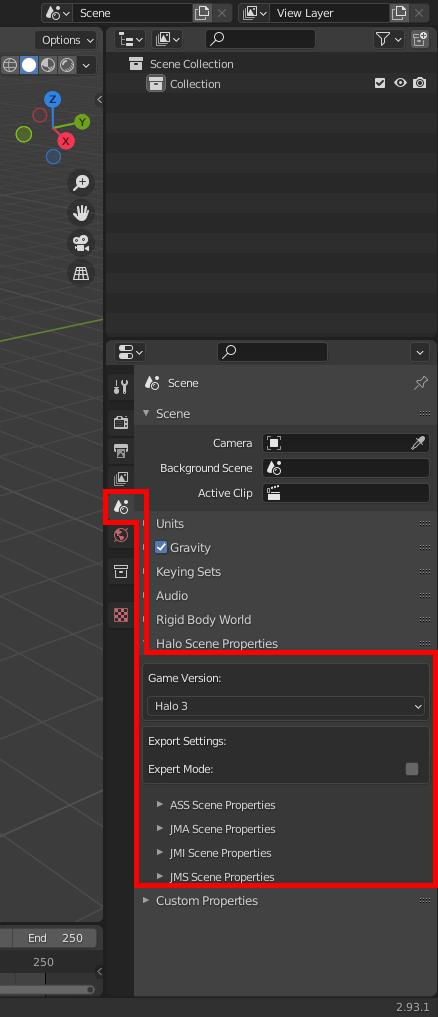

An option added by the exporter to keep settings you don't need to care about hidden. Be sure to set game version to Halo 3 as seen below:

This should help you stay focused on what matters to you.

Workspace

Since we are modeling lets be sure to pick the correct workspace for our work. Choose the Modeling workspace found in the top left by default. You don't need to see things like the timeline if you're just making a level so this should help simplify the experience.

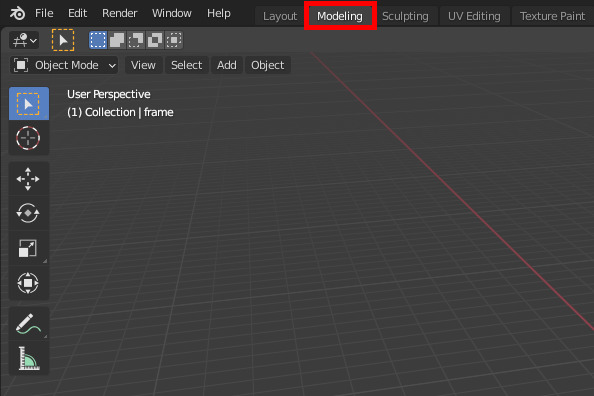

The Modeling tab is at the top of the editor window.

Clip start and end

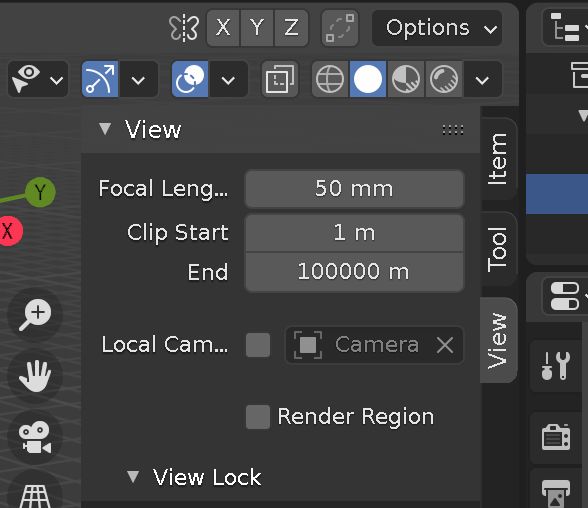

The scale at which Halo levels are modeled is quite large. By default, Blender scenes have a viewport clipping range of 0.01 m to 1000 m. This means that parts of your model may be cut off when zooming out to large scales. Blender's clipping distances can be adjusted in the View settings pane (press N and select the View tab).

A x100 range of 1 m to 100 000 m works well for large outdoor maps:

Clipping distances are set in the view settings pane.

Key configuration

All hotkeys given in this guide are given with the expectation that you are using the default Blender 2.8 preset.


Ready to start modeling a level? Continue to the next guide.

Ready to start creating a custom object? Continue to the next guide.
