The sky_atm_parameters tag is used to create the atmospheric effects in a scenario. This includes light scattering from the sun in the atmosphere, fog, rain, and other effects.

These tags are created and edited using Guerilla.

Patchy Fog

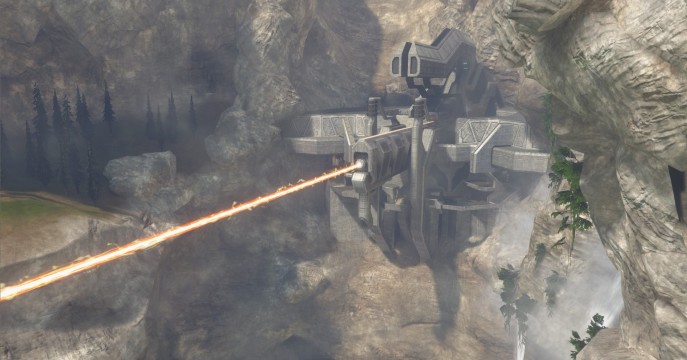

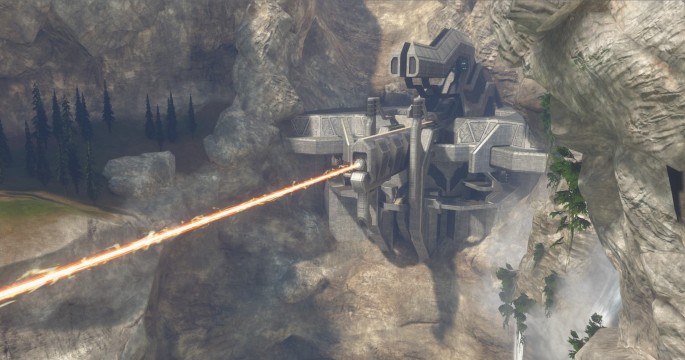

This is a bitmap we can assign to our atmosphere settings to enhance the appearance of fog in our scenario. You can find some basic fog bitmaps in levels\shared\bitmaps\nature\fog.

Patchy Fog Parameters	Description
Texture repeat rate	Scaling factor to apply to fog UV coordinates.
Distance between sheets	Separating distance between sheets of fog.
Depth fade factor	Lower values (approching 0) cause a smoother fade at scene boundaries. Larger values (1 or more) make for a sharp transition.
Cluster search radius	Distance (in world units) to search for neighboring clusters for the purpose of cross-fading atmosphere effects (20-50 seems reasonable, default = 25).
Falloff start distance	Distance (in world units) at which to begin fading out the influence of a cluster (default = 5).
Distance falloff power	Rate at which to begin attenuating the influence of neighboring clusters' fog settings (default = 2).
Transparent sort distance	Distance from the camera where we sort the patchy fog effect (default = 100).

Flags

This section of the tag is where the majority of the visual effects will be adjusted. Click add to create a new atmosphere index to begin adjusting values.

Flags	Description
Enable Atmosphere	Uncheck to turn off atmosphere effects
Override Real Sun Values	Check to override physical sun (the one in the sky model)
Patchy Fog	Check to enable patchy fog in the selected atmosphere index

Name	Naming an atmosphere setting entry is for user convenience only, and has no use outside of the sky_atm_parameters tag

Dominant Light Source

The Dominant Light Source field is where you can override how sun light from the sky affects the appearance of the atmosphere. The Override Real Sun Values flag must be checked for these values to work.

Dominant Light Source	Description
Pitch (0 to 90)	Overrides the angle of the sun.
Heading (0 to 360)	Overrides the direction the sun light is emitting from.
Color	Overrides the color tint of the atmosphere from the sun light.
Intensity	Overrides how bright the color tint is.

Scattering

The Scattering field is where you will define the thickness of the atmosphere within the scenario.

Scattering	Description
Sea Level	In world units, set it to the lowest point of the scenario.
Rayleigh Height Scale	In world units, height above sea level where atmosphere is 30% thick.
Mie Height Scale	In world units, height above sea level where atmosphere is 30% thick.
Rayleigh Multiplier	Affects scattering of light by small particles in the atmosphere.
Mie Multiplier	Affects scattering of light by large particles in the atmopshere.
Sun Phase Function	Scaled from 0-1, controls how focused light scattering is relative to the sun direction. 0 scatters light uniformly throughout the atmosphere, values closer to 1 focuses the scattering closer to the sun.
Desaturation	Increase this to reduce the reddening effect.
Distance Bias	Push the fog away from the player camera, or pull it in.
Max Fog Thickness	The maximum distance for which non-patchy fog still increases in intensity; its effect clamps after that. Default value is usually good for most situations.

Patchy Fog Per-Cluster Parameters

Patchy Fog Per-Cluster Parameters	Description
Sheet Density	Intensity scaling factor applied to all patchy fog sheets.
Full Intensity Height	In world units, patchy fog will be at full intensity below this height.
Half Intensity Height	In world units, height at which patchy fog will be attenuated to half intensity.
Wind Direction	Direction and intensity of fog motion due to wind.

Weather Effect

Weather Effect	Description

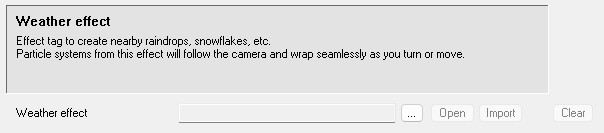

	You can reference effect tags with attached particle systems to create weather effects like rain, snowflakes, dust, etc.

Underwater Settings

This section of the tag is where you can set parameters for the underwater fog effects for water physics volumes found in a scenario's structure_design tag.

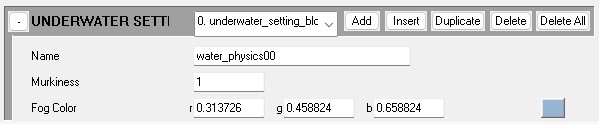

Click add to create a new entry, then set the name to match the name of a water physics volume you want the fog settings to apply to, then adjust the color and murkiness values to your liking. Create new entries and repeat this process for each water physics volume in the scenario's structure_design tag.
