H1A Tool (tool.exe), is a command-line utility used to import source data into tags, and build tags into maps.

This page covers both H1A and HEK versions of Tool. Its usage has generally not changed, but the new version of Tool has many differences including more verbs, new options for existing ones, usability improvements, and the addition of the FBX to JMS/JMA asset pipeline.

Conventions used in this article

  • <arg> - refers to a mandatory argument.
  • [arg] - refers to an optional argument (you can omit these).
  • parentheses appended to the arg name are used to encode valid argument values.
  • arg(option1, option2) - Either option1 or option2 can be passed as arg.
  • arg(optionClass) - Any value of optionClass can be used.
  • Tool or tool.exe - refers to the subject of this article, the H1A Tool, if the legacy Tool is being referred to that will be made explicit.

Command line flags

  • -noassert command line flag can be used with any verb to disable all asserts.
  • -data_dir, -tags_dir, and -game_root_dir can be used to change the tags, data, and maps directories. This might not work with all verbs as it's experimental. See using custom content paths.
  • -pause wait for user input before exiting, useful for custom launchers.


Each type of Tool command is called a verb, and each verb can take several arguments, all separated by spaces. Arguments which include spaces need to be enclosed in quotes.

Tool is used via Command Prompt. Don't worry if you're not unfamiliar -- we've got you covered.


Animation data files containing transforms for a skeleton can be imported into a model_animations tag using the animations verb:

Usage: animations <source-directory>
tool animations "characters\cyborg"


  • source-directory - A local data path to the root of a model source directory.

For the example above, Tool would expect to find corresponding animation data files at data\characters\cyborg\animations\. Assuming no errors, it would be imported as tags\characters\cyborg\cyborg.model_animations.

The source files can have different extensions. That depends on the type of animation they are intended to be. See the page about animation data for information about the various extensions and the different types of animation.

Add rename.txt to reuse animations as other animations, without copying and renaming files.


Import a single TIFF image into a bitmap using the bitmap verb:

Usage: bitmap <source-file> [debug-plate?]
tool bitmap "characters\cyborg\bitmaps\cyborg"


  • source-file - A local data path to a tiff without extension.
  • debug-plate - H1A Tool only. Set this with a true or false. Dumps the processed image back to your data folder so that you may examine it in your preferred image editor. The path for these will be something like data\bitmap-debug\.

For the example above, Tool would expect to find a .tif or .tiff file at data\characters\cyborg\bitmaps\cyborg.tif. Assuming no errors, the image file will be imported into a bitmap tag at tags\characters\cyborg\bitmaps\cyborg.bitmap. The bitmap filename will come from the image filename.

As with the bitmaps verb, TIFF files must have at least 8-bit colour depth and are typically 32-bit. Image data is encoded using DirectXTex.


A folder of TIFF (.tif/.tiff) images can be bulk-imported into bitmap tags using the bitmaps verb:

Usage: bitmaps <source-directory> [2d|3d|cubemaps|sprites|interface] [debug-plate?]
tool bitmaps "characters\cyborg\bitmaps"


  • source-directory - A local data path to a folder containing a set of images for processing.
  • type - H1A Tool only. sets the type of bitmap the image will be converted to. This will change how the source image is expected to be setup. The list of valid options is as follows:
    • 2d
    • 3d
    • cubemaps
    • sprites
    • interface
  • debug-plate - H1A Tool only. Set this with a true or false. Dumps the processed image back to your data folder so that you may examine it in your preferred image editor. The path for these will be something like data\bitmap-debug\.

For the example above, Tool would expect to find .tif/.tiff files at data\characters\cyborg\bitmaps\. Assuming no errors, each image file will be imported into a bitmap tag at tags\characters\cyborg\bitmaps\. Each image file that exists in the source directory will be imported into its own individual tag with the name of the tag coming from the image filename.

With HEK Tool, all images must use the .tif extension for this command to work. If you have .tiff files in the source directory, then rename their extensions to .tif. This is not a problem with H1A Tool.

Tool supports TIFF files with a colour depth of at least 8 bits per pixel, 32-bit color (8 bits per channel) being typical.


A scenario can be built into a map using the build-cache-file verb. Simply provide your scenario's tag path and choose classic or remastered mode (the last two arguments are optional):

Usage: build-cache-file <scenario-name> <classic|remastered> [resource-map-usage<none|read|read_write>] [log-tag-loads]
tool build-cache-file "levels\test\tutorial\tutorial"
tool build-cache-file "levels\test\tutorial\tutorial" classic none


  • scenario-name - A local tag path to your scenario without the file extension.
  • classic|remastered - H1A Tool only. Whether or not S3D is disabled. There is no way to edit S3D files currently so only use remastered if you know what you're doing:
    • classic - Disables the S3D graphics engine. Users will not be able to toggle to the remastered graphics or sounds. This is intended for custom maps that don't support remastered graphics.
    • remastered - Enables the S3D graphics engine. Users will be able to toggle to the remastered graphics and sounds. This is intended for building maps compatible with S3D-based remastered graphics and sounds. Some HUD bitmaps will be read from S3D data files instead of tags. Make sure you're not including any objects in your map which don't have remastered graphics support, such as the flamethrower, or else MCC will crash.
  • resource-map-usage - H1A Tool only. How Tool uses resource maps such a bitmaps.map and sounds.map during map packaging.
    • none - Tool will build self-contained maps and resource maps will not be used during packaging. All assets will be internalized. This is the default and also the behaviour when resource maps are missing from their expected location under the editing kit's maps folder.
    • read - Tool will allow your map to rely on tags within maps\bitmaps.map and maps\sounds.map if present. Any assets that don't exist will instead be internalized. Make sure the resource maps are exact copies of the ones the game will use at runtime, or else the assets will be incorrectly referenced and all textures will appear corrupted in-game.
    • read_write - Tool will add bitmaps and sounds from the map being built into the respective resource maps if they weren't already present. Lightmaps bitmaps are still kept in the map's own cache file rather than added to bitmaps.map.
  • log-tag-loads - H1A Tool only. A true or false arg that writes the tags loading during packaging to tool_tags_loaded.txt in the H1AEK root. This helps build a list of tags needed for a scenario if you are releasing a tag set.

Note: H1A Tool will never update nor read loc.map because it is unused in H1A aside from H1CE compatibility.

The resulting map file can be found in the editing kit's maps directory. This verb also generates reports under reports\<mapname> including a compilation-specific debug.txt and a tag_dump.txt.

H1A Tool recompiles scripts during cache build using .hsc source files from the data directory when available. HEK Tool only uses sources stored within the scenario tag which was sometimes a source of confusion.

It is very important that you extract the mod tool's provided data.zip so the campaign scripts are available for this step because the scripts contained within the scenario tags themselves are not enough to build the stock campaign maps correctly.

Hardcoded tag patches

There are a number of gameplay-balancing tag patches ("Jason Jones edits") made at runtime on Xbox, but also at map build time by Tool. These patches are only made to singleplayer scenarios:

Tag typeTag pathChanges
weaponweapons\pistol\pistolMin error and first error angle to 0.2 degrees, second error angle to 0.4 for first trigger
damage_effectweapons\pistol\bulletElite energy shield damage modifier to 0.8
weaponweapons\plasma rifle\plasma rifleFirst error angle to 0.25 degrees, second error to 2.5 for first trigger

H1A introduced a new scenario flag to opt out of these changes. It's obviously not supported by the legacy HEK Tool, but if the flag is present in the scenario tag invader-build will still respect it when targeting Custom Edition.

These changes are made only to the resulting tag data in the built map file, not your loose tags. But be careful when extracting tags from singleplayer maps (both PC and Xbox)! You will actually overwrite the original weapon tags and cause your custom multiplayer maps to also use these values.


Resource lists are used by the S3D engine (engine developed in-house by Saber Interactive that's used for the remastered graphics). This verb is only applicable to H1A Tool.

Usage: build-resource-list <scenario-name>
tool build-resource-list a10
tool build-resource-list bloodgulch


  • scenario-name - The name of a scenario file without extension.

The command will create the resource list in the ..\preload\lsa folder relative to the current working directory. It is your responsibility to ensure this path exists, it will fail silently if it doesn't.


H1A Tool only. This commands takes a JMA file path and imports it as a camera_track tag. The length of the animation should be at most 16 frames, wich is the maximum number of control points a camera_track tag can contain. The JMA should contain a skeleton made up of a single bone that will change its position each frame. The orientation of the bone will determine the position and rotation of the control point for that index. The name of the JMA file will be the name of the tag.

Usage: camera-track <source-file>
tool camera-track cameras\mytrack.jma


  • source-file - A local data path to where the JMA file is located.


H1A Tool only. This checks the scenario tag and tags it references for issues. Errors will be printed to console. You should not consider this to be a complete check for any invalid tag data; invader-build can do a much better job of that.

Usage: check-map <scenario-name>
tool check-map levels\test\my_broke_level\my_broke_level


  • scenario-name - A local tag path to your scenario without the file extension.


H1A Tool only. Checks all the shader tags in a tag path (including sub-directories). Errors will be printed to console.

Usage: check-shaders <root-directory>
tool check-shaders levels\test\my_broke_level


  • root-directory - A local tag path to a directory containing shader tags.


Imports a JMS file containing a collision model to a model_collision_geometry tag.

Usage: collision-geometry <source-directory> [fix-phantom-bsp]
tool collision-geometry "scenery\rock"
tool collision-geometry "scenery\rock" true


  • source-directory - A local data path to the root of a model source directory. Tool will look for the JMS file under the physics folder within.
  • fix-phantom-bsp - H1A Tool only. Set true to attempt fixing model collision artifacts by enabling the same fixup code used for structure BSPs.

For the example above, Tool would expect to find a corresponding JMS file at data\scenery\rock\physics\rock.JMS. Assuming no errors, it would be imported as tags\scenery\rock\rock.model_collision_geometry. Geometry errors will generate a WRL file for troubleshooting, located either in the same folder as the JMS (H1A Tool) or in the root of the mod tools (HEK Tool).

Permutations and LODs are also supported using the same file name conventions as render model importing:

# <permutation_string> <lod_level>.JMS
base superhigh.JMS


H1A Tool only. Compiles the shader files in the shaders subdirectory into fx.bin, psh.bin and vsh.bin. These are not the same as the shader tags and unless you have a working understanding of 3D graphics programming you don't need to touch this command. You would use this to create distributable graphics modifications for your mod which alter how the game is rendered.

Usage: compile-shaders <xbox1|xbox1_debug|dx11|dx11_debug> <fx|psh|vsh|all>
tool compile-shaders dx11 all


  • xbox1|xbox1_debug|dx11|dx11_debug - What platform to compile shaders for:
    • xbox1 - Compile shaders for the Xbox One platform
    • xbox1_debug - Compile debug shaders for the Xbox One platform
    • dx11 - Compile shaders for the PC platform
    • dx11_debug - Compile debug shaders for the PC platform
  • fx|psh|vsh|all - What files to compile.
    • fx
    • psh
    • vsh
    • all

The xbox1 and xbox1_debug target platforms won't work without a copy of the XDK; which is not publicly available.


H1A Tool only. This command takes two scenarios and copies detail objects from the source to the destination. The scenarios do not have to be the same but it was probably intended to be used on child scenarios. This command has no output to indicate success or failure so you will have to check if the detail objects got copied correctly yourself.

Usage: copy-detail-objects <source scenario> <destination scenario>
tool copy-detail-objects levels\test\deathisland\deathisland levels\test\my_deathisland_test\my_deathisland_test


  • source scenario - A local tag path to your scenario without the file extension.
  • destination scenario - A local tag path to your scenario without the file extension.


H1A Tool only. Dumps information about the "metagame" (MCC scoring information) to a file metagame_info_dump.txt.

tool dump-metagame-info


H1A uses FMOD as its sound middleware. This command builds a FMOD SoundBank file for that use case.

Usage: export-sounds-to-fsb <sound\sfx path>
tool export-sounds-to-fsb "sound\sfx" # export all sounds in sounds/sfx
tool export-sounds-to-fsb "" # export all sounds that exist


  • sound\sfx path - tag path from which sounds will be exported. Can be an empty string to export all sounds.

Builds a sounds_adpcm.fsb and sounds_adpcm.lst.bin using data\sounds\tags.lst to decide which sounds it needs to include, you can find a copy of this file in your MCC install at: <MCC root>\halo1\sound\pc\lst\tags.lst

Make sure you have plenty of free disk space as it will cache the sound data in .fsbcache. This directory can be deleted once you are done building the SoundBank.


H1A Tool only. This writes a scenario's first BSP's render mesh to OBJ format in standard output. Don't use this to bring models into your 3D software; instead use the Halo Asset Blender Development Toolset to import the BSP tag directly with better support.

Usage: export-structure-mesh-obj <scenario-tag-path>
tool export-structure-mesh-obj levels\tutorial\tutorial # print in the console
tool export-structure-mesh-obj levels\a30\a30 > output.obj # write to a file

Although Tool prints the argument as an optional [tag] in its usage, not providing it will crash Tool. It does not appear to be possible to specify a specific BSP of a scenario; Tool will select the first BSP of the scenario.

The OBJ file is extremly basic. It comes from the BSP's renderable mesh and does not include materials, normals, or UV coordinates, and all triangles are separated. The OBJ file uses the Y-up convention unlike Halo itself which is Z-up.


H1A Tool only. This exports a tag to XML format, but some data isn't included so should only be used to compare tags and not as an alternative storage format.

Usage: export-tag-to-xml <tag file> <output file>
tool export-tag-to-xml tags\ui\english.virtual_keyboard english.virtual_keyboard.xml
tool export-tag-to-xml ui\english.virtual_keyboard english.virtual_keyboard.xml


H1A Tool only. Exports multiple tags to multiple XML files.

Usage: export-tags-to-xml <params listing file> [ignore-structure-bsps?]
tool export-tags-to-xml tags.txt 1

Sample params listing file:


Make sure to include a new line after each entry (including the last), otherwise the export file name will be corrupted.


H1A Tool only. This is used to create JMA files from an FBX file. The start and end keyframes are optional and will default to including the full animation provided. For some details on how to setup the FBX file see FBX for H1A.

Usage: fbx-to-jma <in-file> <out-file> [animation-start-keyframe] [animation-end-keyframe]
tool fbx-to-jms data\characters\cyborg\models\cyborg_my_custom_anim.fbx data\characters\cyborg\animations\cyborg_my_custom_anim.jma
tool fbx-to-jms E:\my_fbx_files\cyborg_dab.fbx data\characters\cyborg\animations\cyborg_my_custom_anim.jms

You need to use a standard file path not a path relative to the data folder


H1A Tool only. This is used to create JMS files from an FBX file. For some details on how to setup the FBX file see FBX for H1A.

Usage: fbx-to-jms <in-file> <out-file>
tool fbx-to-jms data\characters\cyborg\models\cyborg.fbx data\characters\cyborg\models\cyborg.jms
tool fbx-to-jms E:\my_fbx_files\better_cyborg.fbx data\characters\cyborg\models\cyborg.jms

You need to use a standard file path not a path relative to the data folder


H1A Tool only. This command allows scanning a directory (including sub-directories) for sound references to add to a dialogue tag.

Usage: find-dialogue <dialogue tag> <directory>
tool find-dialogue test\test_dialogue sound\dialog\jackal\combat2

The command can at most process 512 sounds during one invocation as that is the size of the buffer it stores the filenames in. If you invoke it on a larger directory it will say it found 512 files even when there are more in the directory.


Imports UTF-16 LE text files with an .HMT extension into a hud_message_text tag.

Usage: hud-messages <path> <scenario-name>
tool hud-messages "levels\a10" "a10"

For the example above, Tool would expect to find a text file at data\levels\a10\hud messages.hmt. Assuming no errors, a file named "hud messages.hmt" would be imported at tags\levels\a10\hud messages.hud_message_text.

It's important that the file's name be "hud messages.hmt". Tool specifically looks for a file with this name when importing HUD messages. An HMT file is just a text file, so you can just create it with notepad. Make sure the extension is ".hmt" and the file is UTF-16 LE encoded. The text file must also exist in the root of the scenario folder in data. See more in-depth instructions on writing the file.

the text specified is not 16-bit unicode textEnsure the file is saved with UTF-16 LE encoding.
cannot import hud message text that isn't named "hud messages"Rename the file to "hud messages.hmt".


Unknown purpose.

# import-device-defaults <defaults|profiles> <savegame path>
tool import-device-defaults <(defaults,profiles)> <savegame path>

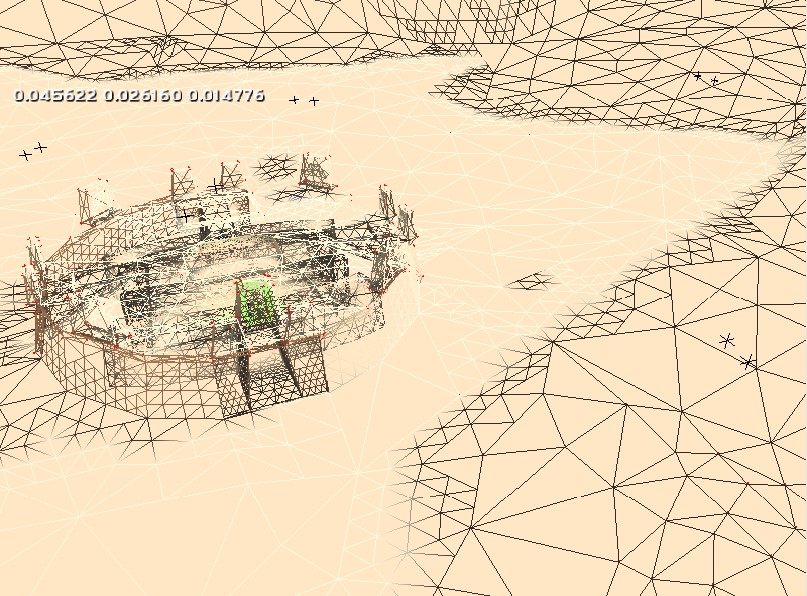

The radiosity process can be visualized in Sapien using rasterizer_wireframe 1. Notice how shadow edges and high detail shaders are subdivided more.

This generates static lighting (lightmaps) for a level's BSP using the radiosity process. Although you can also use Sapien, it's recommended to use Tool since it's faster.

Usage: lightmaps <scenario> <bsp index> <quality> <stop threshhold>
tool lightmaps "levels\test\tutorial\tutorial" tutorial 0 0.1
tool lightmaps "levels\a30\a30" a30_b 1 0.0001 -noassert


  1. Scenario tag path: This is not a file path! Leave off the ".scenario" extension and start the path from within the tags directory.
  2. BSP name: The name of the BSP tag without the file extension. Although this is labeled as "bsp index" in Tool's usage, it is not intended to be a numeric value.
  3. Radiosity quality: A value of 0 runs an inaccurate "fast radiosity", with fewer light bounces, a lower resolution lightmap, and ignoring light occlusion or blocking caused by models. A value of 1 runs a "full radiosity", which is much slower but is used for the release version of maps. For further details, see the radiosity quality settings below.
  4. Stop threshold: Light is cast in multiple passes from each surface, getting progressively finer with each pass. Each pass also reduces the total amount of light to be cast from each surface. When the average radiosity of the scene reaches this value, the process will stop and results get saved. This is the equivalent of choosing when to run radiosity_save in Sapien.

After a short time, you should observe a number counting down towards 0. The radiosity process will stop once this number reaches your "stop" argument. If the number counts up instead, it indicates an issue with your level geometry and you should cancel radiosity to address it (check for WRL warnings). Radiosity can also fail outright on degenerate UV coordinates when using simple parameterization shaders. This will generate a WRL called debug.wrl located either beside your level's JMS file (H1A Tool) or in the root of the HEK.

Consider using the -noassert command line flag to increase speed at the expense of skipping error checking. This should only be used once you know your structure won't cause assertions without the flag and you want to skip doing these checks again during high quality lightmaps.

If your level's lighting is always coming out black, make sure you actually have emitters of light and set a sky reference in your scenario in the case of outdoor levels.

Radiosity quality technical details

Radiosity qualityDefault stop thresholdSamples per sky light
0 (preview)10.0 / 255.04
1 (final)1.0 / 255.016

The radiosity process internally subdivides/tessellates the mesh into an intermediate lightmap structure which is much denser in some places. Depending on the radiosity quality chosen and shader detail level, different constraints will be placed on this process:

Radiosity qualityShader detail levelMax adjacent light differenceMinimum edge lengthLit patch max edge lengthUnlit patch max edge length
0 (preview)High1.
0 (preview)Medium2.
0 (preview)Low3.
0 (preview)Turdfloat_max20.040.080.0
1 (final)High0.50.1250.50.9
1 (final)Medium0.
1 (final)Low0.
1 (final)Turdfloat_max20.040.080.0


This verb can merge the scenery tag blocks of the source scenario to the destination scenario. This was probably used to automate work on child scenarios in Halo's development.

Usage: merge-scenery <source scenario> <destination scenario>
tool.exe merge-scenery "levels\a30\a30" "levels\my_a30\my_a30"

For the example above, Tool would expect to find a source scenario tag file at tags\levels\a10\a10.scenario. The tag blocks in the scenery tag block will be copied over to the destination scenario tag file at tags\levels\my_a30\my_a30.scenario. This will not include scenery palette tag block or object names tag block so watch out for bad indices.


A JMS file containing model geometry can be compiled into a gbxmodel using the model verb:

Usage: model <source-directory> [use-halo2-permutation-lod-selection-logic?]
tool model "scenery\rock"
tool model "weapons\mygun" 1

For the example above, Tool would expect to find a corresponding JMS file at data\scenery\rock\models\rock.JMS. Assuming no errors, it would be imported as tags\scenery\rock\rock.gbxmodel. Geometry errors will cause Tool to create WRL files for troubleshooting, located either adjacent to the JMS or in the HEK root.

Something to note is that Tool reads the filename of the JMS to decide how to generate specific tag data for the model. The format for this is as follows:

# <permutation_string> <lod_level>.JMS
base superhigh.JMS

Permutations are variants for model's regions. LODs (level of detail) are different quality models rendered depending on the object's size on screen. Permutations can be named arbitrarily, though they should match a model's existing permutation names if modifying an existing asset. LOD needs to use a specific string from the list below:

  • superhigh
  • high
  • medium
  • low
  • superlow

Use multiple JMS files to generate multiple permutations in a model.

Tool only uses markers from the superhigh LOD when making a model tag. If you don't have a superhigh LOD (i.e. you have something explicity set as superlow/low/medium/high but not superhigh), no markers will be generated.

Halo 2 LOD selection logic

The optional boolean argument [use-halo2-permutation-lod-selection-logic?] is new to H1A Tool and causes Tool to use H2 Tool logic for choosing LODs. The 'base' permutation's LODs are chosen the same way as the non-base; all permutations propagate using any existing LOD in that permutation when LODs are missing. Any missing LODs for a permutation will use the last non-NONE LOD within that permutation.

This is the more intuitive behaviour and probably what you want to use. The prior lack of this is what causes the Banshee's destroyed permutation to appear intact at the lowest LODs because it re-uses the base permutation's LOD.


A JMS file containing collision spheres can be compiled into a physics using the physics verb:

Usage: physics <source-directory>
tool physics "vehicles\wraith"

For the example above, Tool would expect to find a corresponding JMS file at data\vehicles\wraith\physics\wraith.JMS. Assuming no errors, it would be imported as tags\wraith\wraith.physics.


H1A Tool only. The plate verb takes a set of images and places them in a sequence surrounded by a border to be imported as either sprites or animated images.

Usage: plate <source-path> <scale(2,8)> <alpha(0.0,1.0)> <desired-sequence-count>
tool plate "scenery\rock\bitmaps" 2 0.5 2


  • source-path - Folder containing the .tif files, these should be at least 24-bit.
  • scale - How much the images are scaled down by (8 results in a smaller image than 2).
  • alpha - Blending alpha of border between image and surrounding mask.
  • desired-sequence-count - Number of images you want to include, it's recommended to set this to exactly the number of images in the folder.

More or less the same thing as export-tag-to-xml but prints the tag to standard output (the console) instead. This can be useful for shell scripting or integrating with other tooling like git diff.

Usage: print-tag-to-xml <tag file>
tool print-tag-to-xml ui\english.virtual_keyboard


This command applies bulk changes in gain or distance settings to sound tags in a directory.

Usage: process-sounds <root path> <substring> <gain+|gain-|gain=|maximum-distance|minimum-distance> <value>
tool process-sounds "sound\sfx\ambience\a10" "klax" gain+ 1

For the example above, Tool would expect to find a set of sound tags at tags\sound\sfx\ambience\a10\. Any sound tags that contain the substring "klax" in the filename will have a value of 1 added to gain.


H1A Tool only. The script_doc verb can be used to output documentation for script functions and globals. You can also run script_doc in the console to generate hs_doc.txt. The documentation has already been incorporated into this site's H1 scripting page.

Usage: script_doc [function|global name]
tool script_doc # generate a full hs_doc.txt
tool script_doc recording_play # get documentation for the `recording_play` function
tool script_doc developer_mode # get documentation for the `developer_mode` global


A 16-bit WAV file can be imported into a sound tag using the sounds verb:

Usage: sounds <source-directory> <platform(xbox,wav,ogg)> [ogg_only_value_flag<quality or bitrate>]
tool sounds "vehicles\ghost" ogg 1

The "ogg_only_value_flag" argument is only required if "platform" is OGG, and must be a real number in the range 0.0 - 1.0. The value 0 is the lowest quality and 1 is the highest.

In order to import Xbox sounds you will need the XBADPCM codec installed on your PC. You will get tool errors when trying to convert the sound file otherwise.

Regardless of the platform you choose, the sound file you import should still be saved as a 16 bit WAV file.


Similar to the sounds verb, but imports sounds with a given sound class and defaults to the Xbox platform so make sure you have the codec installed.

Usage: sounds_by_type <source-directory> <type(sound_class)> <round to 64 samples:yes/no>
tool sounds_by_type "vehicles\ghost" projectile_impact yes

The sound class will influence the capabilities of the sound tag, and may be used when the map is built or at runtime. See the sound class field for more info.

Sound classComments
unit_dialogSound file sample rate must be 22Hz. Tool will error out otherwise.


This verb is only present in HEK Tool. UTF-8 text files containing strings can be compiled into a string_list using the strings verb.

There is generally no reason to create string_list tags. Use unicode_string_list instead.

# strings <source-directory>
tool.exe strings "weapons\assault rifle"

For the example above, Tool would expect to find text files at data\weapons\assault rifle\. Assuming no errors, a file named "assault rifle.txt" would be imported as tags\weapons\assault rifle.string_list. Each text file that exists in the source directory will be imported as its own individual tag with the name of the tag coming from the text filename.


A JMS file containing level geometry can be imported into a scenario_structure_bsp using the structure verb:

Usage: structure <scenario-directory> <bsp-name> [fix-phantom-bsp]
tool structure levels\a30 a30_a
tool structure levels\test\tutorial tutorial

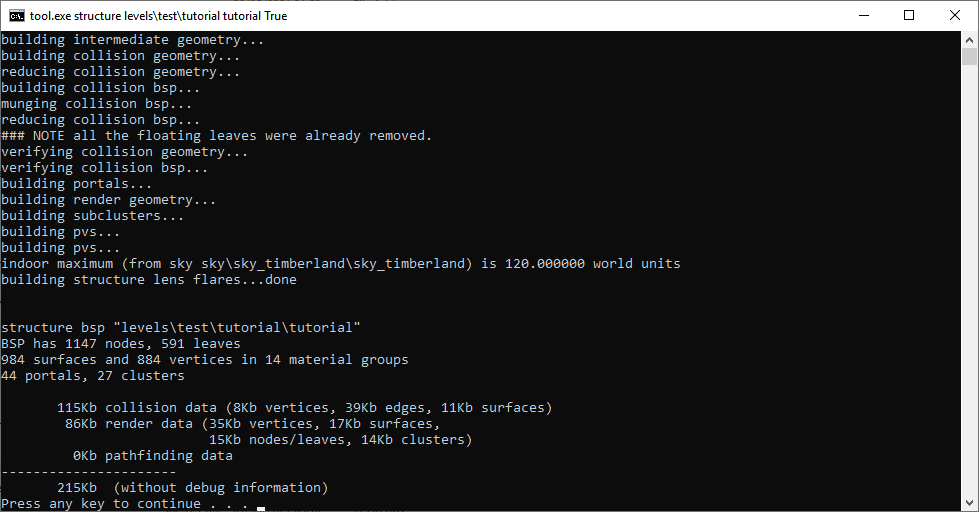

tool structure levels\test\tutorial tutorial true

For the example above, Tool would expect to find a corresponding JMS file at data\levels\a30\models\a30_a.JMS. Assuming no errors, it would be imported as tags\levels\a30\a30_a.scenario_structure_bsp. Geometry errors will cause Tool to create WRL files for troubleshooting, named either yourmap_errors.wrl by H1A Tool or yourmap.wrl by HEK Tool and located either adjacent to the JMS (H1A Tool) or in the HEK root.

Structure compilation converts the raw polygon and materials data from the JMS into data structures which are more efficient for Halo to use during rendering, collision tests, audibility tests, and AI pathfinding. Note that lightmaps are not produced during this step, but rather with the lightmaps verb. Structure import will create a scenario tag if one does not exist already.

Multiple JMS files can be placed in a level's models directory for multiple BSPs (used for large singleplayer levels). Each JMS will be imported into a separate structure BSP and added to the scenario. Scripts and trigger volumes can then be used to switch between the BSPs.

OpenSauce scenarios can cause Tool to freeze if not using OS_Tool. Import the BSP using a dummy stock scenario as a workaround.

Phantom BSP fix

When the H1A-only optional argument [fix-phantom-bsp] is true, sructure import will happen as normal but with an extra "munging collision bsp" step where Tool attempts to fix collision artifacts like phantom BSP. It is known that this flag does not always resolve all cases of phantom BSP.

The produced tag will have larger collision data by roughly 23%, as the flag seems to cause more duplication of surfaces at the leaves of the BSP tree. Therefore this method is unsuitable for high polygon count BSPs which may result in import failure with errors like these:

couldn't allocate leaf_map leaves
### ERROR couldn't initialize leaf map.
### ERROR couldn't create leafy bsp.
### ERROR the maid service spilled bleach on the rug.


Updates breakable surface data for an existing BSP tag. Saves the tag if only if there was no error.

Usage: structure-breakable-surfaces <bsp-path>
tool structure-breakable-surfaces "levels\a10\a10a"


This command updates a BSP's lens flare markers using the current lens flare fields in the BSP's referenced shader_environment tags. This can be used to update the markers after changes to the shader fields without having to recompile the BSP entirely with the structure verb.

Usage: structure-lens-flares <bsp-path>
tool structure-lens-flares "levels\a10\a10a"


UTF-16 text files containing strings can be imported into a unicode_string_list using the unicode-strings verb:

Usage: unicode-strings <source-directory>
tool unicode-strings "ui\mp_map_ui"

For the example above, Tool would expect to find text files at data\ui\mp_map_ui\. Assuming no errors, a file named "prisoner.txt" would be imported as tags\ui\mp_map_ui\prisoner.unicode_string_list. Each text file that exists in the source directory will be imported into its own individual tag with the name of the tag coming from the text filename.

For more in depth instructions see the string list format reference.


This will open a window to preview font packaged installed on your machine. From there you can select a font to package into a valid font tag for Halo to make use of.

Usage: windows-font
tool windows-font


This verb is only present in HEK Tool. It upgrades models to gbxmodel, likely used to port models from the Xbox edition of the game to PC by Gearbox.

Usage: zoners_model_upgrade
tool zoners_model_upgrade


Thanks to the following individuals for their research or contributions to this topic:

  • gbMichelle (Hardcoded tag patch reversing)
  • General_101 (Documenting tool commands (legacy and some H1A))
  • Kavawuvi (Warning about Tool only using marker from superhigh LOD)
  • MosesOfEgypt (Explanation of radiosity passes)
  • num0005 (Documenting H1A commands and updating documentation for other commands.)
  • Vaporeon (Explaining how invader-build treats the Jason Jones opt-out flag)
