hud_message_text

🚧 This incomplete article needs help! Please submit tips and info by pull requests or issues or contacting a maintainer.

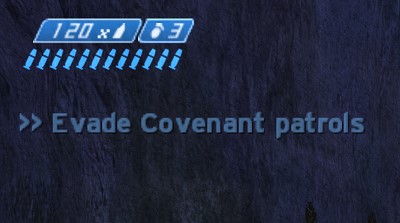

This tag is specifically for messages that appear on your HUD, including level-specific messages like objectives and global generic interaction messages for vehicles, pickups, and devices. It is created by compiling HMT files with Tool.

Scripted messages

A HUD message can be shown for a 4 second duration like so:

(hud_set_help_text obj_evade)
(sleep 120)
(show_hud_help_text false)

Caveats

Some features like newlines in strings will not work in certain situations.

Text symbols

The engine will replace special placeholder tokens in your message text at runtime. Examples include displaying the necessary key to press for an action and creating a new line in a sentence:

Symbol Note
%a-button Display the key mapped to the a-button.
%b-button Display the key mapped to the b-button.
%x-button Display the key mapped to the x-button.
%y-button Display the key mapped to the y-button.
%black-button Display the key mapped to the black-button.
%white-button Display the key mapped to the white-button.
%left-trigger Display the key mapped to the left-trigger.
%right-trigger Display the key mapped to the right-trigger.
%dpad-up Display the key mapped to dpad-up.
%dpad-down Display the key mapped to dpad-down.
%dpad-left Display the key mapped to dpad-left.
%dpad-right Display the key mapped to dpad-right.
%start-button Display the key mapped to the start-button.
%back-button Display the key mapped to the back-button.
%left-thumb Display the key mapped to left-thumb.
%right-thumb Display the key mapped to right-thumb.
%left-stick Display the key mapped to the left-stick.
%right-stick Display the key mapped to the right-stick.
%action Display the key mapped to action.
%throw-grenade Display the key mapped to throw-grenade
%primary-trigger Display the key mapped to the primary-trigger.
%integrated-light Display the key mapped to the integrated-light.
%jump Display the key mapped to jump.
%use-equipment Display the key mapped to use-equipment.
%rotate-weapons Display the key mapped to rotate-weapons.
%rotate-grenades Display the key mapped to rotate-grenades.
%crouch Display the key mapped to crouch.
%zoom Display the key mapped to zoom.
%accept Display the key mapped to accept.
%back Display the key mapped to back.
%move Display the key mapped to move.
%look Display the key mapped to look.
%custom-1 Display the key mapped to custom-1.
%custom-2 Display the key mapped to custom-2.
%custom-3 Display the key mapped to custom-3.
%custom-4 Display the key mapped to custom-4.
%custom-5 Display the key mapped to custom-5.
%custom-6 Display the key mapped to custom-6.
%custom-7 Display the key mapped to custom-7.
%custom-8 Display the key mapped to custom-8.
|n Add a newline to a sentence.

Structure and fields

Field Type Comments
text data TagDataOffset
Field Type Comments
size uint32
external uint32
file offset uint32
pointer ptr64
message elements Block
  • HEK max count: 8192
Field Type Comments
type int8
data int8
messages Block
  • HEK max count: 1024
Field Type Comments
name TagString
Field Type Comments
buffer char[32]
start index into text blob uint16
start index of message block uint16
panel count int8

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

  • Kavawuvi (Invader tag definitions)
  • MosesOfEgypt (Tag structure research)
