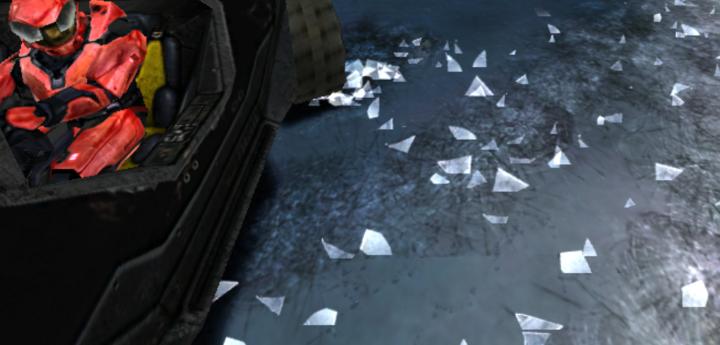

Material effects are used to spawn localized effects when dynamic objects like vehicles and bipeds collide with each other and the BSP.

Related HaloScript



(debug_material_effects [boolean])

Displays cyan spheres wherever material_effects are being generated, like under the player's feet and where physics spheres intersect with the BSP or model_collision_geometry.


Structure and fields

  • HEK max count: 13

This block has positional entries for different types of material interactions, such as walking, impacts, and vehicle tire slip.

  • HEK max count: 33

This block has positional entries for every hard-coded material type. These are the same material types seen in damage_effect modifiers.

effectTagDependency: effect

The effect to locally spawn at the interaction/collision point, which can do things like create decals, particles, lights, etc.

soundTagDependency: sound

A sound to play at the interaction/collision point. It is also possible to add a sound part to the effect above, but using this field may prevent the game from cutting this sound during effect-intense scenes.
