particle_system

🚧 This article is a stub. You can help expand it by submitting content in pull requests or issues in this wiki's source repo.

A particle system describes the creation and evolution of particles, most commonly for explosions.

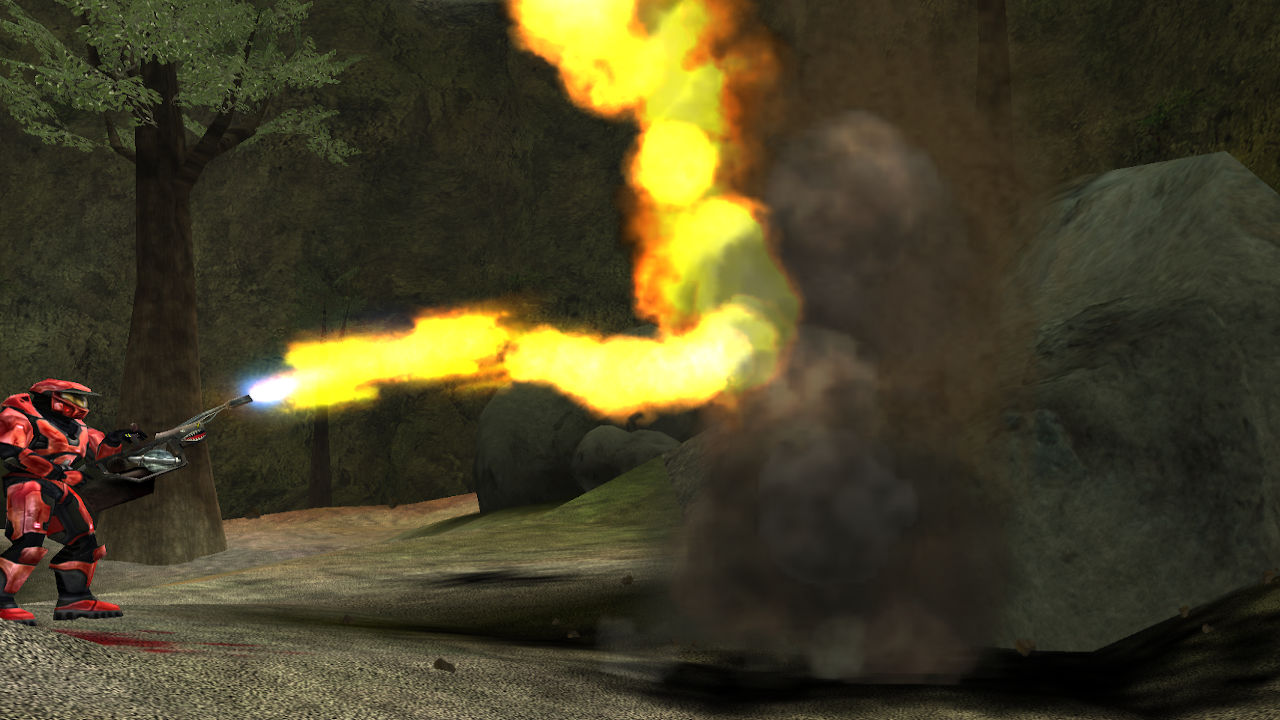

This tag was given support for a "jet" particle creation physics type when Gearbox ported the game to PC, in order to support the flamethrower's fire.

Structure and fields #

Field Type Comments
pad(4)
pad(52)
system update physics enum
Option Value Comments
default 0x0
explosion 0x1
pad(2)
physics flags bitfield(32)
Flag Mask Comments
unused 0x1
physics constants Block?
Field Type Comments
k f32
particle types Block?
Field Type Comments
name char[32]
flags bitfield(32)
Flag Mask Comments
type states loop 0x1
forward backward 0x2
particle states loop 0x4
forward backward 1 0x8
particles die in water 0x10
particles die in air 0x20
particles die on ground 0x40
rotational sprites animate sideways 0x80
disabled 0x100
tint by effect color 0x200
initial count scales with effect 0x400
minimum count scales with effect 0x800
creation rate scales with effect 0x1000
scale scales with effect 0x2000
animation rate scales with effect 0x4000
rotation rate scales with effect 0x8000
don't draw in first person 0x10000
don't draw in third person 0x20000
initial particle count u16
pad(2)
complex sprite render modes enum
Option Value Comments
simple 0x0
rotational 0x1
pad(2)
radius f32 (world units)
pad(36)
particle creation physics enum
Option Value Comments
default 0x0
explosion 0x1
jet 0x2
pad(2)
physics flags bitfield(32)
Flag Mask Comments
unused 0x1
physics constants Block?
Field Type Comments
k f32
states Block?
Field Type Comments
name char[32]
duration bounds f32 (second) (min & max)
transition time bounds f32 (second) (min & max)
pad(4)
scale multiplier f32
animation rate multiplier f32
rotation rate multiplier f32
color multiplier
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
radius multiplier f32
minimum particle count f32
particle creation rate f32 (particles per second)
pad(84)
particle creation physics enum
Option Value Comments
default 0x0
explosion 0x1
jet 0x2
particle update physics enum
Option Value Comments
default 0x0
physics constants Block?
Field Type Comments
k f32
particle states Block?
Field Type Comments
name char[32]
duration bounds f32 (seconds) (min & max)
transition time bounds f32 (seconds) (min & max)
sequence index Index: u16
pad(2)
pad(4)
scale f32 (world units per pixel) (min & max)
animation rate f32 (frames per second) (min & max)
rotation rate Angle: f32 (degrees per second) (min & max)
color 1
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
color 2
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
radius multiplier f32
pad(36)
pad(36)
unknown int u32 (little endian?)
  • Only set when the tag is compiled into a map cache.
shader flags bitfield(16)
Flag Mask Comments
sort bias 0x1
nonlinear tint 0x2
don't overdraw fp weapon 0x4
framebuffer blend function enum
Option Value Comments
alpha blend 0x0
multiply 0x1
double multiply 0x2
add 0x3
subtract 0x4
component min 0x5
component max 0x6
alpha multiply add 0x7
framebuffer fade mode enum
Option Value Comments
none 0x0
fade when perpendicular 0x1
fade when parallel 0x2
map flags bitfield(16)
Flag Mask Comments
unfiltered 0x1
pad(28)
anchor enum
Option Value Comments
with primary 0x0
with screen space 0x1
zsprite 0x2
flags bitfield(16)
Flag Mask Comments
unfiltered 0x1
u animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
u animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
u animation period f32 (seconds)
u animation phase f32
u animation scale f32 (repeats)
v animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
v animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
v animation period f32 (seconds)
v animation phase f32
v animation scale f32 (repeats)
rotation animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
rotation animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
rotation animation period f32 (seconds)
rotation animation phase f32
rotation animation scale f32 (degrees)
rotation animation center
Point2D
  • x: f32
  • y: f32
pad(4)
zsprite radius scale f32
pad(20)
physics constants Block?
Field Type Comments
k f32

This information was partially generated using Invader tag definitions.

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

  • Kavawuvi (Invader tag definitions)
  • MosesOfEgypt (Tag structure research)
