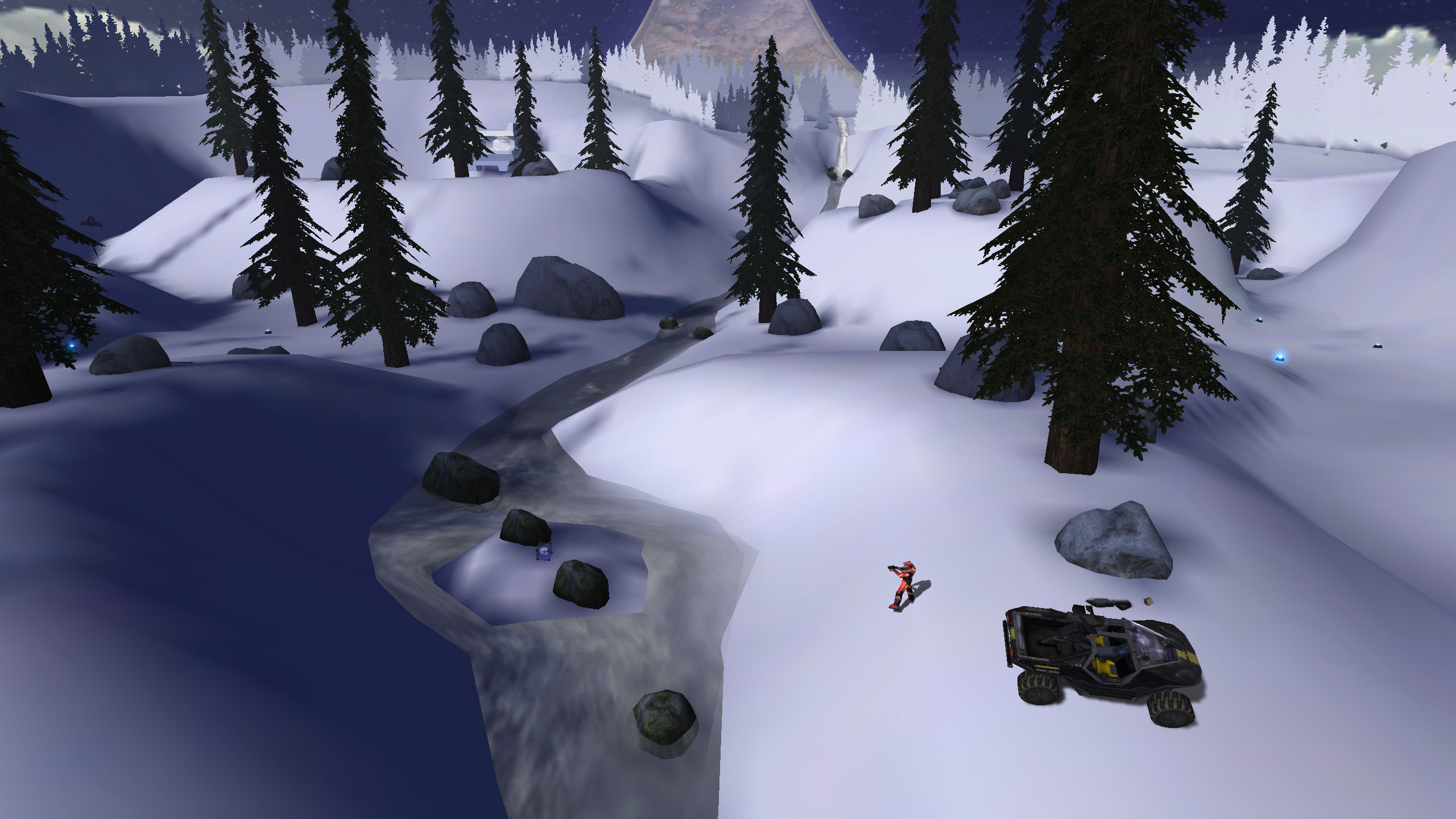

Lightmaps are a combination of data storing the static "baked" lighting of a BSP. Since the BSP does not move, and many shadow-casting objects like scenery have fixed locations, base global illumination can be precalculated. Dynamic objects will cast shadow-mapped shadows and be lit using lightmap data at runtime.
Lightmap data in the BSP is comprised of both:
- A reference to a generated bitmap containing diffuse lighting as texture sheets.
- Mesh data which stores local lighting information for dynamic objects, among other purposes.
The HEK's built-in radiosity process can be run using Tool, LM_Tool, or Sapien. It splits the BSP's render mesh into many fragments depending on shader parameters like simple parameterization and detail level, and UV-maps them to texture sheets. A texture is rendered to apply levels of light to those surfaces.
If higher resolution or greater control of lighting is desired, Aether facilitates texture baking in standalone 3D software.
Sky lights, emissive environment shaders, scenery with lights, and light fixtures can all be used as light sources to illuminate the BSP. If you change any of these inputs, or move any scenery, you must re-run radiosity.
Lighting for dynamic objects
All objects usually receive their lighting from the environment using data in the BSP tag generated during radiosity. See object shadows and lighting.
Only moving objects like units cast real-time shadows; scenery cast shadows in the baked lightmap using the object's collision model rather than its render model, likely because the collision model is stored using a BSP structure which is more efficient to perform lighting calculations with. Dynamic shadows will only be rendered if the ground point lightmap sample is bright enough or when default lighting applies.
Related script functions and globals
The following are related functions that you can use in your scenario scripts and/or debug globals that you can enter into the developer console for troubleshooting.
Shows the incoming light colour and vector for all objects which results from sampling lightmap data at the ground point beneath the object. This data is used to shade the object and cast its shadow.
Scales ambient light from the lightmap. Defaults to
Toggles if object lighting transitions smoothly when the object moves between different ground point surfaces or default lighting.
Disables diffuse textures in the BSP, showing just the lightmap shading and specular components.
Toggles the rendering of structure BSP lightmaps. When disabled, the level will be completely invisible.
Enables or disables texture filtering for lightmaps. When disabled, lightmaps will appear blocky and jagged. Has no effect in H1A.
If the mode is
Thanks to the following individuals for their research or contributions to this topic:
- Conscars (Object lighting tests)
