projectile

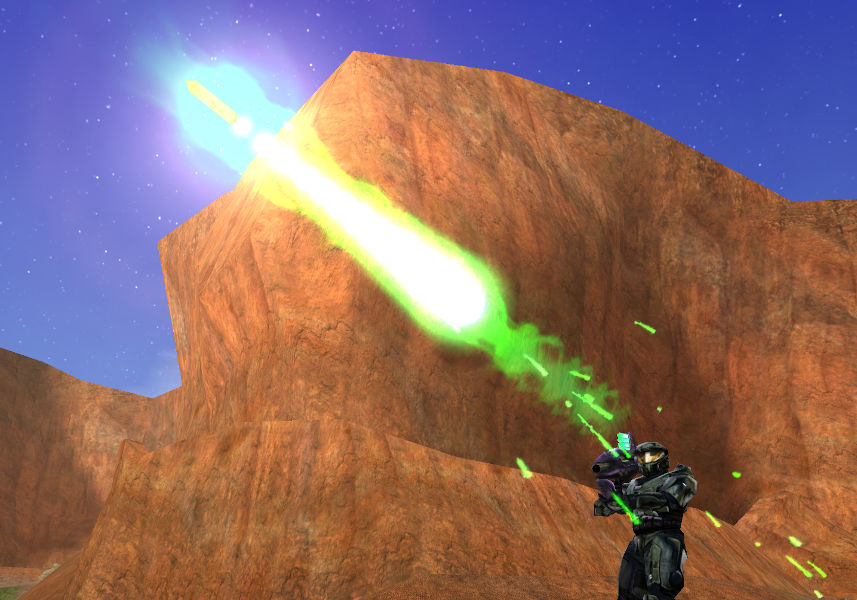

Projectiles are a type of object that can be fired from weapon triggers and thrown as grenades. They can have render models and various attachments, and are capable of bouncing, detonations, different responses by impacted material, ballistic trajectories, and various other settings.

Movement

Projectile movement is simulated during each game tick (smallest unit of simulated time). According to the projectile's velocity and gravity scale, its next position is calculated by the engine and a "trace" ray between the two points is tested for collisions.

The trace collision test takes advantage of other objects' bounding radii and the collision BSP structures found in model_collision_geometry and scenario_structure_bsp. If any collision is detected, it is handled accordingly (e.g. applying effects or playing sounds).

If a collision radius is set then and the game uses an additional 2 offset rays to check for collisions with objects.

If no collision is detected, the projectile is moved to its next position at the end of the trace line. The process continues, tick by tick, until the projectile collides, detonates at its maximum range, or is removed at its maximum air or water damage range.

A sufficiently high velocity projectile is effectively hitscan if it can cross a playable space within a single tick, with the game being simulated at 30 ticks per second. Otherwise, ballistic leading will be required to hit a moving target.

	Function/global	Type
	`(ai_debug_ballistic_lineoffire_freeze [boolean])` If enabled, the ballistic arc drawn by `ai_render_ballistic_lineoffire` will not update when new grenades are thrown.	Global
	`(ai_render_ballistic_lineoffire [boolean])` Toggles the rendering of ballistic aiming arcs when AI throw grenades only (does not include hunter guns, wraiths, or other ballistic weapons). The arc is shown in green when unobstructed and orange when obstructed by an object or the BSP. Its origin point and vector are shown in yellow. Only a single arc is shown at a time and updates whenever a new grenade is thrown. This can be paused with `ai_debug_ballistic_lineoffire_freeze`.	Global

Function/global

Type

(ai_debug_ballistic_lineoffire_freeze [boolean])

If enabled, the ballistic arc drawn by ai_render_ballistic_lineoffire will not update when new grenades are thrown.

Global

(ai_render_ballistic_lineoffire [boolean])

Toggles the rendering of ballistic aiming arcs when AI throw grenades only (does not include hunter guns, wraiths, or other ballistic weapons). The arc is shown in green when unobstructed and orange when obstructed by an object or the BSP. Its origin point and vector are shown in yellow. Only a single arc is shown at a time and updates whenever a new grenade is thrown. This can be paused with ai_debug_ballistic_lineoffire_freeze.

Global

Structure and fields

Field Type Comments

projectile flags bitfield

Flag	Mask	Comments
oriented along velocity	`0x1`	Projectile will always face in the direction it's moving in.
ai must use ballistic aiming	`0x2`	AI will try to arc their shots to hit their targets rather than firing directly at them. Useful if the projectile has a strong arc or long travel time, throws off AI aim if not.
detonation max time if attached	`0x4`
has super combining explosion	`0x8`	If seven of this projectile are attached to the same biped, this projectile's super detonation effect will be triggered. This number is hardcoded and cannot be changed.
combine initial velocity with parent velocity	`0x10`	When off, projectiles add the component of the shooter's velocity in the direction of travel when firing. When on, the shooter's unmodified velocity is added to the projectile's when firing.
random attached detonation time	`0x20`
minimum unattached detonation time	`0x40`

detonation timer starts enum

Option	Value	Comments
immediately	`0x0`	The detonation timer begins immediately after the projectile is created, causing it to explode after a fixed length of time.
after first bounce	`0x1`	Treated identically to when at rest by the game (same code path).
when at rest	`0x2`	Once the projectile comes to rest, its detonation timer begins. If it becomes in motion again, the timer is not interrupted.

impact noise

enum

How loudly AI will perceive this impact.

Option	Value	Comments
silent	`0x0`	The sound is not perceived at all.
medium	`0x1`	This is the volume of the sniper rifle. The exact radius is unknown.
loud	`0x2`
shout	`0x3`	Every AI in the BSP can hear this.
quiet	`0x4`

projectile a in enum

Option	Value	Comments
none	`0x0`
range remaining	`0x1`
time remaining	`0x2`
tracer	`0x3`

projectile b in enum^?

projectile c in enum^?

projectile d in enum^?

super detonation TagDependency: effect

ai perception radius

float

Unit: world units

collision radius

float

Unit: world units

Setting this to a non-zero value causes the game to test for projectile collisions using 3 horizontal rays. In addition to the normal central ray, two additional rays are added to the left and right offset by this distance (like Quake's lightning gun). The side rays can only collide with objects and not BSP. When the side rays detect a collision then the projectile will be snapped to that location. The projectile's bounding radius does not affect this.

arming time

float

Unit: seconds

danger radius

float

Unit: world units

Actors within this distance of the projectile may attempt to avoid it, such as by diving away, depending on actor settings.

effect TagDependency: effect

timer

Bounds

Unit: seconds

Field	Type	Comments
min	`float`
max	`float`

minimum velocity

float

Unit: world units per second

maximum range

float

Unit: world units

air gravity scale float

air damage range

Bounds^?

Unit: world units

Determines the maximum range that the projectile travels in the air and scales impact damage between its lower and upper bound. When the projectile reaches the maximum range, it disappears (and does not detonate). If detonation at a max range is desired, used the maximum range field above. See the impact damage formula for more information. If these values are set to 0, maximum damage is applied and the projectile continues traveling until colliding or detonating.

water gravity scale float

water damage range

Bounds^?

Unit: world units

Like air damage range, but for underwater environments (determined by the is water flag of fog tags).

initial velocity

float

Unit: world units per second

Sets the velocity of the projectile upon creation. For grenades thrown by AI, see actor_variant grenade velocity. For player-thrown grenades, see unit grenade velocity.

final velocity

float

Unit: world units per second

guided angular velocity

float

Unit: degrees per second

detonation noise

enum^?

How loudly AI will perceive this detonation.

detonation started TagDependency: effect

flyby sound TagDependency: sound

attached detonation damage TagDependency: damage_effect

impact damage TagDependency: damage_effect

projectile material response

Block

HEK max count: 33

Field Type Comments

flags bitfield

Flag	Mask	Comments
cannot be overpenetrated	`0x1`

default response enum

Option	Value	Comments
disappear	`0x0`
detonate	`0x1`
reflect	`0x2`
overpenetrate	`0x3`
attach	`0x4`

default effect TagDependency: effect

potential response enum^?

potential flags bitfield

Flag	Mask	Comments
only against units	`0x1`
never against units	`0x2`	H1A only

potential skip fraction

float

Min: 0
Max: 1

potential between Bounds^?

potential and

Bounds^?

Unit: world units per second

potential effect TagDependency: effect

scale effects by enum

Option	Value	Comments
damage	`0x0`
angle	`0x1`

angular noise float

velocity noise

float

Unit: world units per second

detonation effect TagDependency: effect

initial friction float

maximum distance float

parallel friction float

perpendicular friction float

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

Conscars (Testing collision radius)
FD (Explaining "combine initial velocity with parent velocity")
gbMichelle (Movement)
Kavawuvi (Invader tag definitions)
Mimickal (Explaining bounce timer)
MosesOfEgypt (Tag structure research)
Vennobennu (Field documentation)
xScruffyDaSasquatchx (Explaining noise volumes for AI perception)
