shader_transparent_chicago_extended

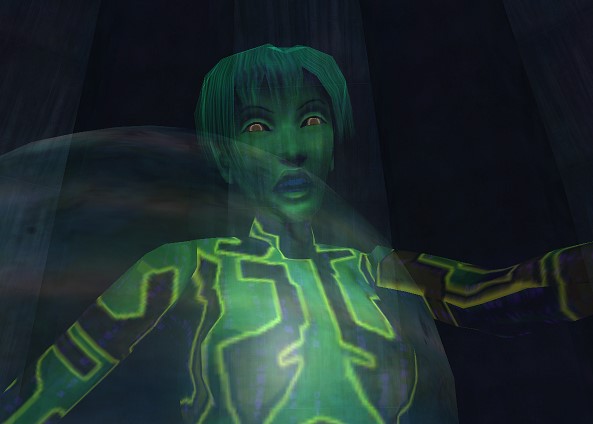

Transparent chicago extended shaders are essentially identical to shader_transparent_chicago, but have an additional 2-stage block used when video hardware does not support more than 2 maps in a shader (which can be simulated with arguments). There is no reason to use this shader type over shader_transparent_chicago on modern systems.
See shader_transparent_chicago for more documentation.
Structure and fields
This tag inherits fields from shader which are not shown here. See the parent's page for more information. The following information is unique to the shader_transparent_chicago_extended tag.
Field |
Type |
Comments |
numeric counter limit |
u8 |
|
shader transparent chicago extended flags |
bitfield(8) |
|
Flag | Mask | Comments | alpha tested | 0x1 | | decal | 0x2 | | two sided | 0x4 | | first map is in screenspace | 0x8 | | draw before water | 0x10 | | ignore effect | 0x20 | | scale first map with distance | 0x40 | | numeric | 0x80 | | |
first map type |
enum |
|
Option | Value | Comments | 2d map | 0x0 | | first map is reflection cube map | 0x1 | | first map is object centered cube map | 0x2 | | first map is viewer centered cube map | 0x3 | | |
framebuffer blend function |
enum |
|
Option | Value | Comments | alpha blend | 0x0 | | multiply | 0x1 | | double multiply | 0x2 | | add | 0x3 | | subtract | 0x4 | | component min | 0x5 | | component max | 0x6 | | alpha multiply add | 0x7 | | |
framebuffer fade mode |
enum |
|
Option | Value | Comments | none | 0x0 | | fade when perpendicular | 0x1 | | fade when parallel | 0x2 | | |
framebuffer fade source |
enum |
|
Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | |
|
pad(2) |
|
lens flare spacing |
f32 (world units) |
|
lens flare |
Reference? : lens_flare
|
|
|
Block? |
Warning: Using a shader with extra layers on an object with transparent self occlusion enabled causes Sapien to crash. |
Field | Type | Comments | | Reference? : shader
| | |
maps 4 stage |
Block? |
|
Field | Type | Comments | flags | bitfield(16) | | Flag | Mask | Comments | unfiltered | 0x1 | | alpha replicate | 0x2 | | u clamped | 0x4 | | v clamped | 0x8 | | | | pad(2) | | | pad(40) | | color function | enum | | Option | Value | Comments | current | 0x0 | | next map | 0x1 | | multiply | 0x2 | | double multiply | 0x3 | | add | 0x4 | | add signed current | 0x5 | | add signed next map | 0x6 | | subtract current | 0x7 | | subtract next map | 0x8 | | blend current alpha | 0x9 | | blend current alpha inverse | 0xa | | blend next map alpha | 0xb | | blend next map alpha inverse | 0xc | | | alpha function | enum | | Option | Value | Comments | current | 0x0 | | next map | 0x1 | | multiply | 0x2 | | double multiply | 0x3 | | add | 0x4 | | add signed current | 0x5 | | add signed next map | 0x6 | | subtract current | 0x7 | | subtract next map | 0x8 | | blend current alpha | 0x9 | | blend current alpha inverse | 0xa | | blend next map alpha | 0xb | | blend next map alpha inverse | 0xc | | | | pad(36) | | map u scale | f32 | | map v scale | f32 | | map u offset | f32 | | map v offset | f32 | | map rotation | f32 | | mipmap bias | Fraction: f32 | | map | Reference? : bitmap
| | | pad(40) | | u animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | u animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | u animation period | f32 (seconds) | | u animation phase | f32 | | u animation scale | f32 (world units) | | v animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | v animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | v animation period | f32 (seconds) | | v animation phase | f32 | | v animation scale | f32 (world units) | | rotation animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | rotation animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | rotation animation period | f32 (seconds) | | rotation animation phase | f32 | | rotation animation scale | f32 (degrees) | | rotation animation center | Point2D (2) | | |
maps 2 stage |
Block? |
This block is used instead of maps 4 stage on older video hardware. |
Field | Type | Comments | flags | bitfield(16) | | Flag | Mask | Comments | unfiltered | 0x1 | | alpha replicate | 0x2 | | u clamped | 0x4 | | v clamped | 0x8 | | | | pad(2) | | | pad(40) | | color function | enum | | Option | Value | Comments | current | 0x0 | | next map | 0x1 | | multiply | 0x2 | | double multiply | 0x3 | | add | 0x4 | | add signed current | 0x5 | | add signed next map | 0x6 | | subtract current | 0x7 | | subtract next map | 0x8 | | blend current alpha | 0x9 | | blend current alpha inverse | 0xa | | blend next map alpha | 0xb | | blend next map alpha inverse | 0xc | | | alpha function | enum | | Option | Value | Comments | current | 0x0 | | next map | 0x1 | | multiply | 0x2 | | double multiply | 0x3 | | add | 0x4 | | add signed current | 0x5 | | add signed next map | 0x6 | | subtract current | 0x7 | | subtract next map | 0x8 | | blend current alpha | 0x9 | | blend current alpha inverse | 0xa | | blend next map alpha | 0xb | | blend next map alpha inverse | 0xc | | | | pad(36) | | map u scale | f32 | | map v scale | f32 | | map u offset | f32 | | map v offset | f32 | | map rotation | f32 | | mipmap bias | Fraction: f32 | | map | Reference? : bitmap
| | | pad(40) | | u animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | u animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | u animation period | f32 (seconds) | | u animation phase | f32 | | u animation scale | f32 (world units) | | v animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | v animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | v animation period | f32 (seconds) | | v animation phase | f32 | | v animation scale | f32 (world units) | | rotation animation source | enum | | Option | Value | Comments | none | 0x0 | | a out | 0x1 | | b out | 0x2 | | c out | 0x3 | | d out | 0x4 | | | rotation animation function | enum | | Option | Value | Comments | one | 0x0 | | zero | 0x1 | | cosine | 0x2 | | cosine variable period | 0x3 | | diagonal wave | 0x4 | | diagonal wave variable period | 0x5 | | slide | 0x6 | | slide variable period | 0x7 | | noise | 0x8 | | jitter | 0x9 | | wander | 0xa | | spark | 0xb | | | rotation animation period | f32 (seconds) | | rotation animation phase | f32 | | rotation animation scale | f32 (degrees) | | rotation animation center | Point2D (2) | | |
|
bitfield(32) |
|
Flag | Mask | Comments | | 0x1 | | | 0x2 | | |
|
pad(8) |
|
This information was partially generated using Invader tag definitions.
Acknowledgements
Thanks to the following individuals for their research or contributions to this topic:
- Jakey (Explaining purpose of this tag)
- Kavawuvi (Invader tag definitions)
- MosesOfEgypt (Tag structure research)
