shader_transparent_generic

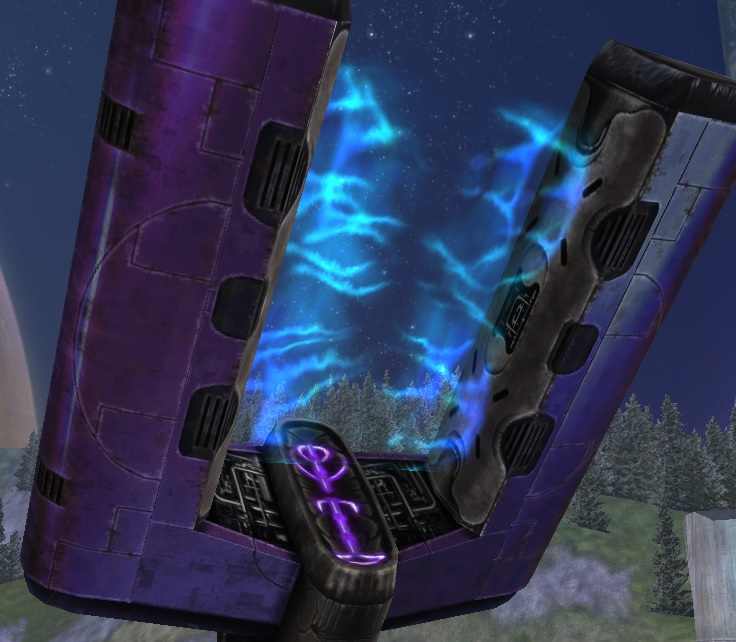

🚧 This article is a stub. You can help expand it by submitting content in pull requests or issues in this wiki's source repo.

...

Structure and fields #

This tag inherits fields from shader which are not shown here. See the parent's page for more information. The following information is unique to the shader_transparent_generic tag.

Field Type Comments
numeric counter limit u8
shader transparent generic flags bitfield(8)
Flag Mask Comments
alpha tested 0x1
decal 0x2
two sided 0x4
first map is in screenspace 0x8
draw before water 0x10
ignore effect 0x20
scale first map with distance 0x40
numeric 0x80
first map type enum
Option Value Comments
2d map 0x0
first map is reflection cube map 0x1
first map is object centered cube map 0x2
first map is viewer centered cube map 0x3
framebuffer blend function enum
Option Value Comments
alpha blend 0x0
multiply 0x1
double multiply 0x2
add 0x3
subtract 0x4
component min 0x5
component max 0x6
alpha multiply add 0x7
framebuffer fade mode enum
Option Value Comments
none 0x0
fade when perpendicular 0x1
fade when parallel 0x2
framebuffer fade source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
pad(2)
lens flare spacing f32 (world units)
extra layers Block?
Field Type Comments
maps Block?
  • Maximum: 4
Field Type Comments
flags bitfield(16)
Flag Mask Comments
unfiltered 0x1
u clamped 0x2
v clamped 0x4
pad(2)
map u scale f32
  • Default value: 1.
map v scale f32
  • Default value: 1.
map u offset f32
map v offset f32
map rotation f32 (degrees)
mapmap bias Fraction: f32
  • Maximum: 1
u animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
u animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
u animation period f32 (seconds)
  • Default value: 1.
u animation phase f32
u animation scale f32 (repeats)
  • Default value: 1.
v animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
v animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
v animation period f32 (seconds)
  • Default value: 1.
v animation phase f32
v animation scale f32 (repeats)
  • Default value: 1.
rotation animation source enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
rotation animation function enum
Option Value Comments
one 0x0
zero 0x1
cosine 0x2
cosine variable period 0x3
diagonal wave 0x4
diagonal wave variable period 0x5
slide 0x6
slide variable period 0x7
noise 0x8
jitter 0x9
wander 0xa
spark 0xb
rotation animation period f32 (seconds)
  • Default value: 1.
rotation animation phase f32
rotation animation scale f32 (degrees)
  • Default value: 1.
rotation animation center
Point2D
  • x: f32
  • y: f32
stages Block?
  • Maximum: 7
Field Type Comments
flags bitfield(16)
Flag Mask Comments
color mux 0x1
alpha mux 0x2
a out controls color0 animation 0x4
pad(2)
color0 source enum
Option Value Comments
none 0x0
a 0x1
b 0x2
c 0x3
d 0x4
color0 animation function enum
Option Value Comments
none 0x0
a out 0x1
b out 0x2
c out 0x3
d out 0x4
color0 animation period f32 (seconds)
color0 animation lower bound
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
color0 animation upper bound
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
color1
ColorARGB
  • alpha: f32
  • red: f32
  • green: f32
  • blue: f32
input a enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map color 0 0x5
map color 1 0x6
map color 2 0x7
map color 3 0x8
vertex color 0 diffuse light 0x9
vertex color 1 fade perpendicular 0xa
scratch color 0 0xb
scratch color 1 0xc
constant color 0 0xd
constant color 1 0xe
map alpha 0 0xf
map alpha 1 0x10
map alpha 2 0x11
map alpha 3 0x12
vertex alpha 0 fade none 0x13
vertex alpha 1 fade perpendicular 0x14
scratch alpha 0 0x15
scratch alpha 1 0x16
constant alpha 0 0x17
constant alpha 1 0x18
input a mapping enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input b enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map color 0 0x5
map color 1 0x6
map color 2 0x7
map color 3 0x8
vertex color 0 diffuse light 0x9
vertex color 1 fade perpendicular 0xa
scratch color 0 0xb
scratch color 1 0xc
constant color 0 0xd
constant color 1 0xe
map alpha 0 0xf
map alpha 1 0x10
map alpha 2 0x11
map alpha 3 0x12
vertex alpha 0 fade none 0x13
vertex alpha 1 fade perpendicular 0x14
scratch alpha 0 0x15
scratch alpha 1 0x16
constant alpha 0 0x17
constant alpha 1 0x18
input b mapping enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input c enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map color 0 0x5
map color 1 0x6
map color 2 0x7
map color 3 0x8
vertex color 0 diffuse light 0x9
vertex color 1 fade perpendicular 0xa
scratch color 0 0xb
scratch color 1 0xc
constant color 0 0xd
constant color 1 0xe
map alpha 0 0xf
map alpha 1 0x10
map alpha 2 0x11
map alpha 3 0x12
vertex alpha 0 fade none 0x13
vertex alpha 1 fade perpendicular 0x14
scratch alpha 0 0x15
scratch alpha 1 0x16
constant alpha 0 0x17
constant alpha 1 0x18
input c mapping enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input d enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map color 0 0x5
map color 1 0x6
map color 2 0x7
map color 3 0x8
vertex color 0 diffuse light 0x9
vertex color 1 fade perpendicular 0xa
scratch color 0 0xb
scratch color 1 0xc
constant color 0 0xd
constant color 1 0xe
map alpha 0 0xf
map alpha 1 0x10
map alpha 2 0x11
map alpha 3 0x12
vertex alpha 0 fade none 0x13
vertex alpha 1 fade perpendicular 0x14
scratch alpha 0 0x15
scratch alpha 1 0x16
constant alpha 0 0x17
constant alpha 1 0x18
input d mapping enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
output ab enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output ab function enum
Option Value Comments
multiply 0x0
dot product 0x1
output bc enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output cd function enum
Option Value Comments
multiply 0x0
dot product 0x1
output ab cd mux sum enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output mapping color enum
Option Value Comments
color identity 0x0
color scale by 1 2 0x1
color scale by 2 0x2
color scale by 4 0x3
color bias by 1 2 0x4
color expand normal 0x5
input a alpha enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map alpha 0 0x5
map alpha 1 0x6
map alpha 2 0x7
map alpha 3 0x8
vertex alpha 0 fade none 0x9
vertex alpha 1 fade perpendicular 0xa
scratch alpha 0 0xb
scratch alpha 1 0xc
constant alpha 0 0xd
constant alpha 1 0xe
map blue 0 0xf
map blue 1 0x10
map blue 2 0x11
map blue 3 0x12
vertex blue 0 blue light 0x13
vertex blue 1 fade parallel 0x14
scratch blue 0 0x15
scratch blue 1 0x16
constant blue 0 0x17
constant blue 1 0x18
input a mapping alpha enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input b alpha enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map alpha 0 0x5
map alpha 1 0x6
map alpha 2 0x7
map alpha 3 0x8
vertex alpha 0 fade none 0x9
vertex alpha 1 fade perpendicular 0xa
scratch alpha 0 0xb
scratch alpha 1 0xc
constant alpha 0 0xd
constant alpha 1 0xe
map blue 0 0xf
map blue 1 0x10
map blue 2 0x11
map blue 3 0x12
vertex blue 0 blue light 0x13
vertex blue 1 fade parallel 0x14
scratch blue 0 0x15
scratch blue 1 0x16
constant blue 0 0x17
constant blue 1 0x18
input b mapping alpha enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input c alpha enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map alpha 0 0x5
map alpha 1 0x6
map alpha 2 0x7
map alpha 3 0x8
vertex alpha 0 fade none 0x9
vertex alpha 1 fade perpendicular 0xa
scratch alpha 0 0xb
scratch alpha 1 0xc
constant alpha 0 0xd
constant alpha 1 0xe
map blue 0 0xf
map blue 1 0x10
map blue 2 0x11
map blue 3 0x12
vertex blue 0 blue light 0x13
vertex blue 1 fade parallel 0x14
scratch blue 0 0x15
scratch blue 1 0x16
constant blue 0 0x17
constant blue 1 0x18
input c mapping alpha enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
input d alpha enum
Option Value Comments
zero 0x0
one 0x1
one half 0x2
negative one 0x3
negative one half 0x4
map alpha 0 0x5
map alpha 1 0x6
map alpha 2 0x7
map alpha 3 0x8
vertex alpha 0 fade none 0x9
vertex alpha 1 fade perpendicular 0xa
scratch alpha 0 0xb
scratch alpha 1 0xc
constant alpha 0 0xd
constant alpha 1 0xe
map blue 0 0xf
map blue 1 0x10
map blue 2 0x11
map blue 3 0x12
vertex blue 0 blue light 0x13
vertex blue 1 fade parallel 0x14
scratch blue 0 0x15
scratch blue 1 0x16
constant blue 0 0x17
constant blue 1 0x18
input d mapping alpha enum
Option Value Comments
clamp x 0x0
1 clamp x 0x1
2 0x2
1 2 0x3
clamp x 1 2 0x4
1 2 clamp x 0x5
x 0x6
x 1 0x7
output ab alpha enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output cd alpha enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output ab cd mux sum alpha enum
Option Value Comments
alpha discard 0x0
alpha scratch alpha 0 final alpha 0x1
alpha scratch alpha 1 0x2
alpha vertex alpha 0 fog 0x3
alpha vertex alpha 1 0x4
alpha map alpha 0 0x5
alpha map alpha 1 0x6
alpha map alpha 2 0x7
alpha map alpha 3 0x8
output mapping alpha enum
Option Value Comments
color identity 0x0
color scale by 1 2 0x1
color scale by 2 0x2
color scale by 4 0x3
color bias by 1 2 0x4
color expand normal 0x5

This information was partially generated using Invader tag definitions.

Acknowledgements

Thanks to the following individuals for their research or contributions to this topic:

  • Kavawuvi (Invader tag definitions)
  • MosesOfEgypt (Tag structure research)
